Solar Cell Trainer Laboratory Set

Order Code: 23246494.6

Category: General Lab Equipment I

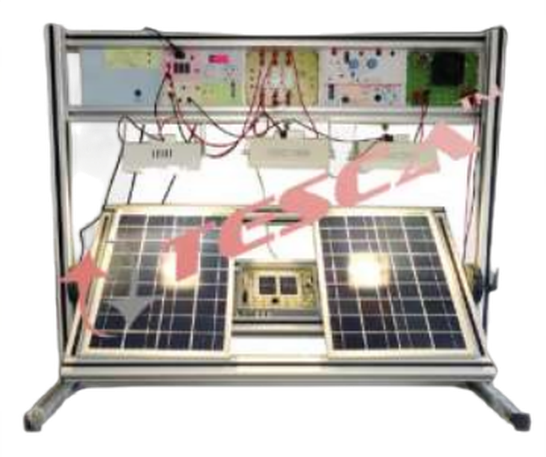

The Solar Cell Trainer is an easy and self-contained trainer designed for learning the basic configuration and characteristics of a solar cell. Through the use of different irradiations for various load units, students study the photoelectric effect ...



SPECIFICATION

The Solar Cell Trainer is an easy and self-contained trainer designed for learning the basic configuration and characteristics of a solar cell. Through the use of different irradiations for various load units, students study the photoelectric effect of solar cells and plot the current-voltage curve as well as charging / discharging curves.

List of Experiment:

  1. Measuring the irradiation of various light sources

  2. Energy conversion of solar cells

  3. Diode characteristic of a solar cell

  4. Effect of light-sensing area on the open-circuit voltage of solar cell

  5. Effect of light-sensing area on the short-circuit current of solar cell

  6. Effect of irradiation on open-circuit voltage and short-circuit current of solar cells.

  7. I-V curve of solar cells

  8. Open-circuit voltage and short-circuit current of solar cells connected in series-shading

  9. Open-circuit voltage and short-circuit current of solar cells

  10. connected in parallel-shading

  11. I-V curve of solar cells

  12. Conversion efficiency and Maximum Power Point (MPP)

  13. Simulating a daily course of sunlight

  14. Charging a capacitor with solar cells

  15. Capacitor discharging

  16. Constructing a solar power island system

  17. Inverter

  18. Effect of temperature on solar performance
