Soap wrapping machine

Order Code: 23246505.5

Category: General Lab Equipment II

TYPICAL PROFILE Soap wrapping machine: bar soaps are automatically wrapped in film sheets one by one to form a bag and individually wrapped. SPECIFICATIONS AND REQUIREMENTS   Type: horizontal flow wrap machine Max. speed (pac...



SPECIFICATION

TYPICAL PROFILE

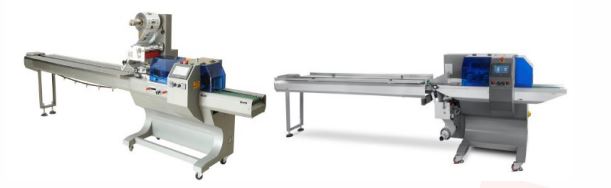

  • Soap wrapping machine: bar soaps are automatically wrapped in film sheets one by one to form a bag and individually wrapped.

SPECIFICATIONS AND REQUIREMENTS


  • Type: horizontal flow wrap machine
  • Max. speed (packets per minute): approx. 300


Compressed air

  • Pressure: 0.35 to 0.60 MPa
  • Air consumption: approx. 0.5 litres/min at 0.5 MPa
  • Laminate: heat sealable laminates or printed cold seal laminates
  • Feeding system: in-line smart belt system
  • Max. film width: approx. 220 mm
  • Max. film roller diameter: approx. 400 mm
  • Roller core diameter: approx. 75 mm


Available bag size

  • Bag length: 50 to 350 mm or more range
  • Bag width: 35 to 70 mm or more range
  • Bag height: 10 to 30 mm or more range
  • Power requirement:  AC 400V+/- 10%V, 50 Hz, three-Phase


Dimension

  • Length: approx. 8,165 mm
  • Width: approx. 990 mm
  • Height: approx. 1,785 mm
  • Weight: 2,000 kg or less
