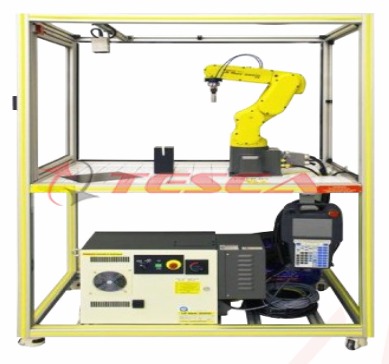

Six Axis Robot Logistic Warehousing Sorting Line

Order Code: 24258143.11

Category: General Lab Equipment V

System Overview: This advanced system integrates position sensing, pick and place functionality, and the collaboration of 6-axis and 3-axis robot arms. It emphasizes the development and training in key areas such as sensor technology, information pr...



SPECIFICATION

System Overview:
This advanced system integrates position sensing, pick and place functionality, and the collaboration of 6-axis and 3-axis robot arms. It emphasizes the development and training in key areas such as sensor technology, information processing, electronic engineering, automation control, and artificial intelligence. The system represents a sophisticated integration of mechatronics, providing a robust platform for intelligent factory development. To enhance its capabilities, the system includes a sliding rail kit and vision kit, allowing for more complex automation tasks.
Training Courses Offered:
• Robot Handling and Palletizing
• Basic Serial Communication
• Python Programming
• Collaboration between 6-Axis & 3-Axis Robot Arms
• Bus Control Using Arduino

Technical Specifications:
Six-Axis Robot Arm:

• Number of Axes: 6
• Maximum Payload: 400g
• Working Radius: 315mm
• Communication Interfaces: USB, Wi-Fi, Bluetooth, RS485
• Base Diameter: 160mm
• Repeated Positioning Accuracy: 0.2mm
• Pen Hole Diameter: 10mm
• Suction Cup Diameter: 10mm

Sliding Rail:
• Maximum Payload: 1kg
• Effective Delivery Length: 500mm
• Maximum Speed: 100mm/s
AI Vision Kit:
• Programming Language: Python
• Effective Pixels: 3 Megapixels
• Color Type: Full Color
• Focus: 3.6mm
• Light Source: 8 LEDs
• Screen: 1.77-inch TFT LCD
Standard Items Included:

• Robotic Arm x 1
• Power Cable, High-speed USB Cable, IDC Cable x 1 each
• Pen Holder x 1
• Micro Servo Gripper x 1
• Multifunctional Extender Box x 1
• Sticker x 1
• Handbook x 1
• Pneumatic Set x 1
• Robot Controller x 1
Warranty and Service:
• Warranty: 2 years, including service and spare parts
• Installation, testing, and commissioning must be performed by qualified engineers
Training and Documentation:
• A comprehensive 5-day training session will be conducted at the delivery location for at least five participants
• An experiment manual with detailed step-by-step instructions for each experiment will be provided
• Original brochure/catalogue for the system will also be supplied
