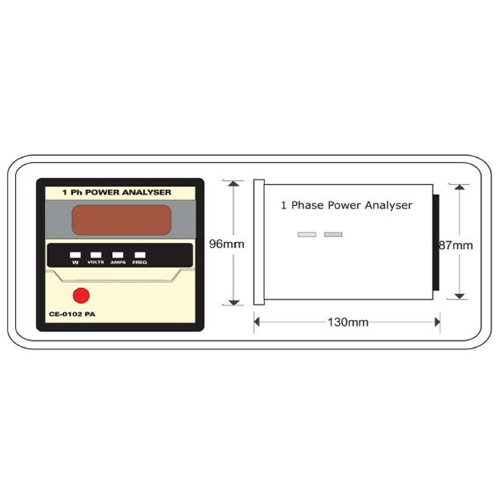

Single Phase Power Analysis Meter

Order Code: 19204659.16.13

Category: General Lab Equipment III

Modular design Display Type: Digital LED Display Measuring Function:  Voltage V, Current A, Active Power KWH, Reactive Power VAR, Appearant Power VA, Power Factor PF, Measuring Range : Voltage : 6 ~ 600V Current : 0.015 ...



SPECIFICATION

  • Modular design
  • Display Type: Digital LED Display
  • Measuring Function:
  • Voltage V,
  • Current A,
  • Active Power KWH,
  • Reactive Power VAR,
  • Appearant Power VA,
  • Power Factor PF,
  • Measuring Range :
  • Voltage : 6 ~ 600V
  • Current : 0.015 ~ 5A
  • Analog Output: 4 ~ 20mA (Optional)
  • Alarm Output: Two Alarm Free Setting NC, NO (Optional)
  • Communication : RS485, MODBUS RTU Protocol (Optional)
  • Accuracy: ±0.5%
  • Protection: Fuse
  • Power Supply: 85 ~ 265VAC, 50Hz
  • Terminals: 4mm Safety Socket
  • Unit Type : Panel H1
