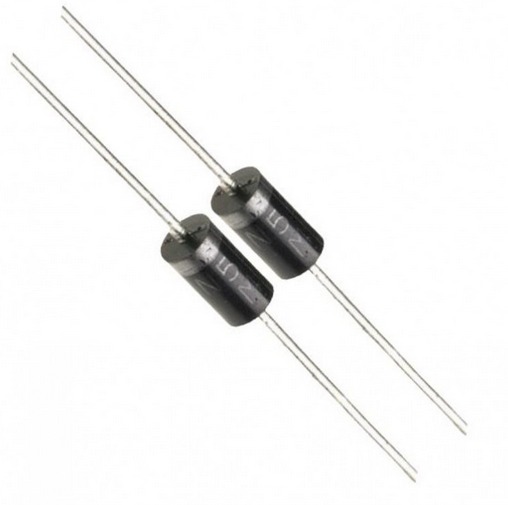

Silicon Diode IN 540

Order Code: 24257551.50

Category: General Lab Equipment V

Features:- • Diffused Junction, High Current Capability. • Low Forward Voltage Drop, Low Reverse Leakage Current. • Maximum repetitive reverse voltage Vrrm of 1KV. • Single Phase, Half Wave, 60Hz, Resistive or Inductiv...



SPECIFICATION

Features:-

• Diffused Junction, High Current Capability.

• Low Forward Voltage Drop, Low Reverse Leakage Current.

• Maximum repetitive reverse voltage Vrrm of 1KV.

• Single Phase, Half Wave, 60Hz, Resistive or Inductive Load.


Specifications:-

    Type:                                                                Rectifier
    Size:                                                                 9.5mm Length, 5.3mm Diameter
    Voltage Rating:                                                1000V
    Current Rating:                                                 3A
    Temperature Rating:                                        -50 to 150 Deg C
    Number of Pins:                                               2 Pins
    Mounting:                                                         Through Hole
    Diode Configuration:                                        Stud Cathode
    Maximum Forward Voltage Drop:                    12V
    Peak Reverse Current:                                     5µA
    Peak Non-Repetitive Forward Surge Current:  200A
