Signal Sources TFTxV298-368
Order Code: TFTxV298-368
Category: Signal Sources
Features: Long Life Battery operation Economical Small & Rigid design Description: The TFTx V298-368 is a transmitter which operates in frequency ranges from 2960MHz to 3610MHz The signal output uses a SMA connector to f...
SPECIFICATION
Features:
- Long Life Battery operation
- Economical
- Small & Rigid design
Description:

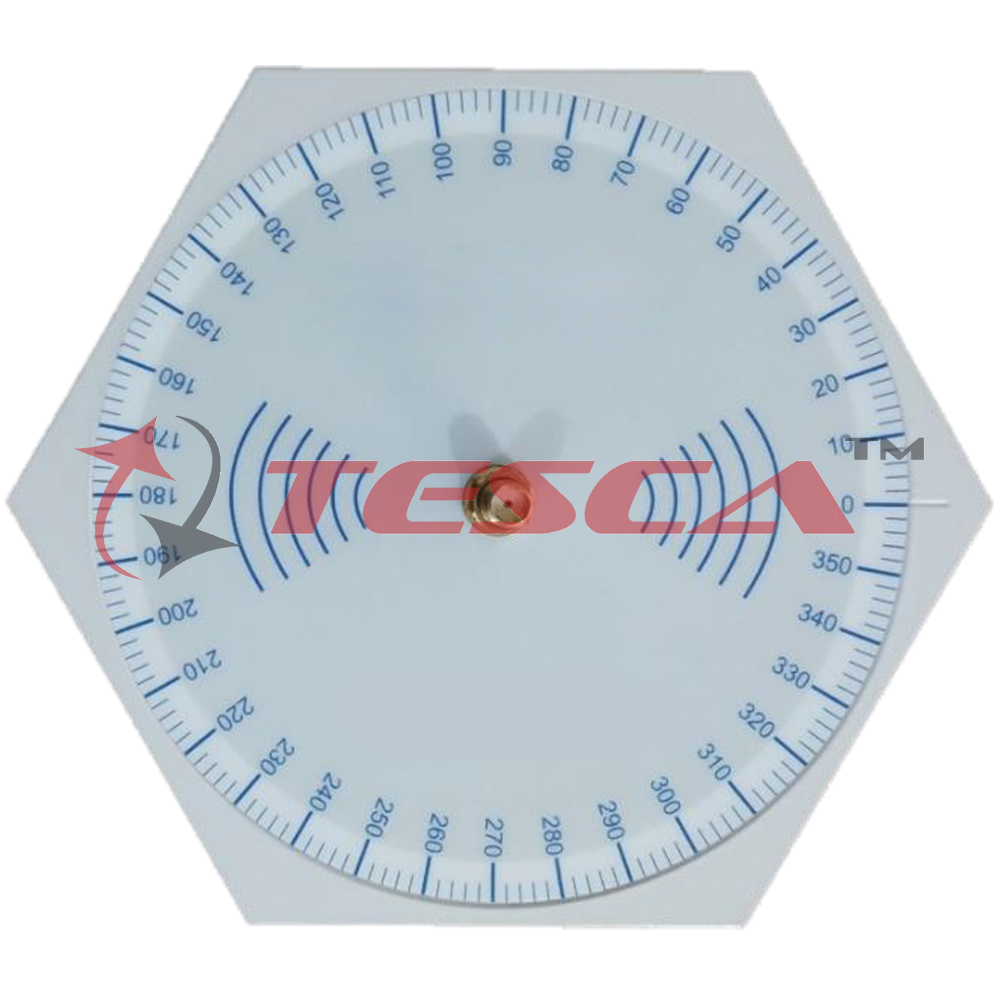

The TFTx V298-368 is a transmitter which operates in frequency ranges from 2960MHz to 3610MHz The signal output uses a SMA connector to facilitate the connection to RF test equipment.
Applications:
- Scientific equipment manufacturer
- EMC Test laboratories
- Antenna manufacturer
- Testing of shielding e?ectiveness
- Engineering and technology colleges
- Amateur Radio services
- WiMAX
- Microwave Ovens
Standard Accessories:
- Charger (Figure 1)
- SMA(M) to SMA(M) 50 Ohms cable 10” (Figure 2)
|
Electrical Speci?cations: |
|
|
Frequency Range: |
2960 MHz to 3610 MHz |
|
Output Power: |
0 ± 1.2dBm |
|
Harmonics: |
Min. 7 dBc |
|
VSWR: |
2:1, all Phases |
|
Output Impedance: |
50 Ohm |
|
Mode of Operation: |
Single/ Sweep |
|
Sweep Time: |
1s/2s/5s/10s |
|
Phase Noise: |
-102dBc/HZ @ 100KHz |
|
Frequency Drift Rate: |
0.8 MHz/°C |
|
Center Frequency Drift: |
1 % |
|
Number of Steps: |
250 |
|
Frequency Resolution: |
10 MHz Typical |
|
Display : |
4 Digit 7 Segment LED |
|
Operating temperature: |
0 ?C to 50 ?C |
|
Battery Operation : |
8 Hour for single charge |
|
Connector: |
SMA Female |
|
Power Consumption: |
0.3 Watt (Max.) |
|
Mechanical Speci?cations: |
|
|
Dimensions (mm) : |
(A) = 138.2, (H) = 115, (S) = 66.4 |
|
Shape: |
Hexagonal shape |
|
Weight : |
300 gm |
