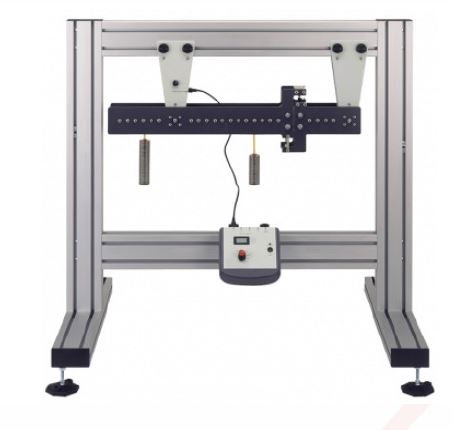

Shear force in a beam

Order Code: 23247221.1

Category: General Lab Equipment IV

For testing on simply supported and cantilever beams: To determine the elastic modulus and beam deflection To study continuous beams with various loadings The apparatus consists: an upper cross member carrying a graduat...



SPECIFICATION

  1. For testing on simply supported and cantilever beams:
    1. To determine the elastic modulus and beam deflection
    2. To study continuous beams with various loadings
  2. The apparatus consists:
    1. an upper cross member carrying a graduated scale, and two lower members bolted to tee-legs
    2. 3 load cells and cantilever support pillar slide
    3. The distance between supports should be adjustable
    4. 4 weight hangers and set of weights: 1 kg - 10 units
    5. 3 dial gauges (metric unit)
    6. "Standard" test specimen beams of round, square, tube, tee, and I-sections of at least 3 different materials each
