Set up to test the variation of R, C in R and RC triggering circuits on firing angle of SCR and observe the firing angles with R,C variation.
Order Code: 24257890.27
Category: General Lab Equipment V
SCR Firing Circuit Kit (R, RC, UJT, DC Bias Triggering) Description: This kit is designed to demonstrate and study various SCR firing techniques, including R, RC, UJT, and DC bias triggering. It provides a hands-on approach to understanding SCR...
SPECIFICATION

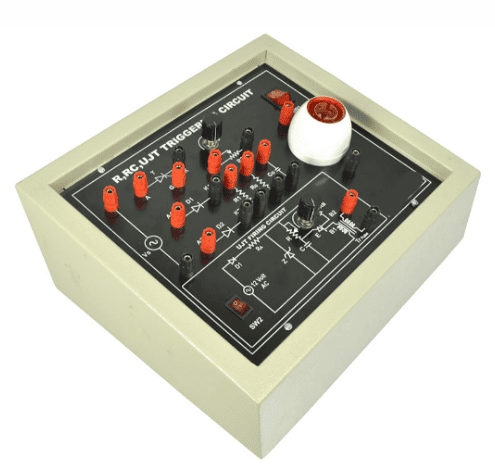

SCR Firing Circuit Kit (R, RC, UJT, DC Bias Triggering)
Description:
This kit is designed to demonstrate and study various SCR firing techniques, including R, RC, UJT, and DC bias triggering. It provides a hands-on approach to understanding SCR operation and triggering mechanisms.
Components Included:
-
Power Supplies:
-
In-built IC-based DC Regulated Power Supply:
-
+12V DC / 150mA
-
9V AC
-
-
Variable Power Supply:
-
0-2V DC / 150mA for DC triggering
-
-
-
SCR Circuit:
-
SCR-based Circuit (2P4M configuration) for firing operation
-
-
Additional Components:
-
On-board Lamp Holder for SCR testing
-
Test Point Facility to visualize output on a CRO (Cathode Ray Oscilloscope)
-
-
Circuit Design and Layout:
-
Circuit Diagram Printed on the front panel for easy reference
-
Important Test Points clearly marked on the front panel for easy access during experiments
-
-
Power Requirements:
-
230V AC ±10%, 50Hz for system operation
-
Standard Accessories:
-
6V / 1/4W Lamp for testing
-
Patch Cords for connections
-
Instruction Manual to guide setup and experiments
This kit is ideal for educational purposes, allowing students and practitioners to explore the fundamentals of SCR triggering circuits and their applications.
