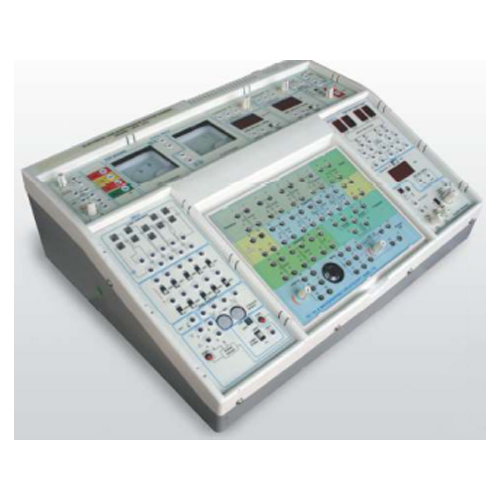

Semiconductors Trainer

Order Code: 171832441

Category: General Lab Equipment IV

Intended to introduce students to semiconductors and their applications in electronic circuits, users can select from a range of faults to be inserted into the study module circuits to develop electronic diagnostic and faultfinding techniques. T...



SPECIFICATION

  • Intended to introduce students to semiconductors and their applications in electronic circuits, users can select from a range of faults to be inserted into the study module circuits to develop electronic diagnostic and faultfinding techniques.
  • Topics to be covered in the module:
  • P-N Junction Diode Ohm's Law
  • Half Wave Rectifier
  • Bridge (Full Wave) Rectifier
  • Zener Diode
  • Transistor Characteristics
  • Transistor Amplifier
  • Bias Stabilization
  • Other Amplifiers
  • Two Stage Amplifier
  • The Transistor as a Switch
  • Typical Activities to be included in the module:
  • Measure the DC parameters of a PN junction diode
  • Measure Vp and Vav for a half wave rectifier output
  • Measure reservoir capacitor voltages for a half wave rectifier output
  • Identify the characteristics of a full wave rectifier circuit
  • Diagnose a fault in a zener stabilizer circuit
  • Make current gain measurements on a bipolar junction transistor (BJT) to calculate the forward current gain
  • Measure collector current for a bipolar junction transistor
  • Determine by measurement and calculation the input resistance of a bipolar junction transistor
  • Identify the meaning and purpose of feedback in a bipolar junction transistor amplifier
  • Measure quiescent and dynamic voltages for an emitter follower (CC) amp to determine the gain
  • Measure the bandwidth of a two-stage cascaded amplifier
  • Recognize the states of a bipolar junction transistor switch
  • Faultfinding semiconductor circuits
