Semiconductor Component Checker and Curve Tracer

Products Categories

Semiconductor Component Checker and Curve Tracer

Order Code: 16950

Category: Misc

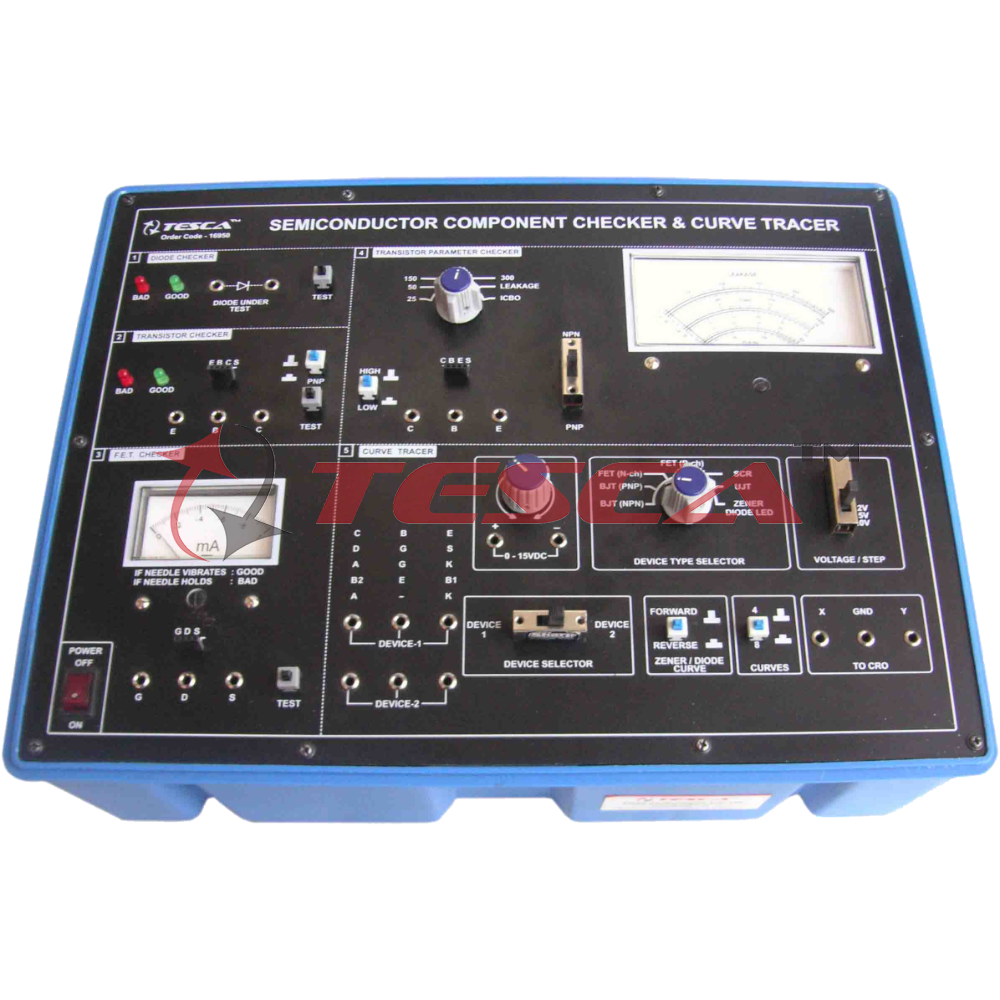

16950 Semiconductor component checker & curve tracer are useful for checking & tracing the characteristics curve of a variety of components in a very short time duration. The Instrument consist of five different sections, detai...

SPECIFICATION

SECTION - 1. DIODE CHECKER :-
SPECIFICATIONS :
01. Indicates whether diode is open circuit, short circuit & if
working, its polarity.
02. Silicon & germanium, both types of diodes can be tested.

FEATURES :
Two LED's & One test switch are provided showing :
01. Open diode - If both LED's are OFF.
02. Short diode - If both LED's are ON.
03. Good diode - If one glows fully & other dim.

SECTION - 2. TRANSISTOR CHECKER :-
SPECIFICATIONS :
01. For good transistor LED marked GOOD will glow.
02. For bad transistor LED marked BAD will glow..

FEATURES :
01. One transistor socket and three sockets are provided.
02. A switch decides NPN or PNP transistor.
03. Good transistor - If one glows fully & other dim.
SECTION - 3. FET CHECKER :-
SPECIFICATIONS :
01. For GOOD FET, the meter needle vibrates continuously between a maximum position to a minimum position. .
02. For BAD FET, either there is no response in the meter or it holds at one point.

FEATURES :
01. One transistor socket and three sockets are provided.
02. An ammeter of 1 mA range is provided .
03. Designed to test almost all FET's.
