SCR Parallel Inverter with Power Supply

Order Code: 46543

Category: Electrical Machine Lab

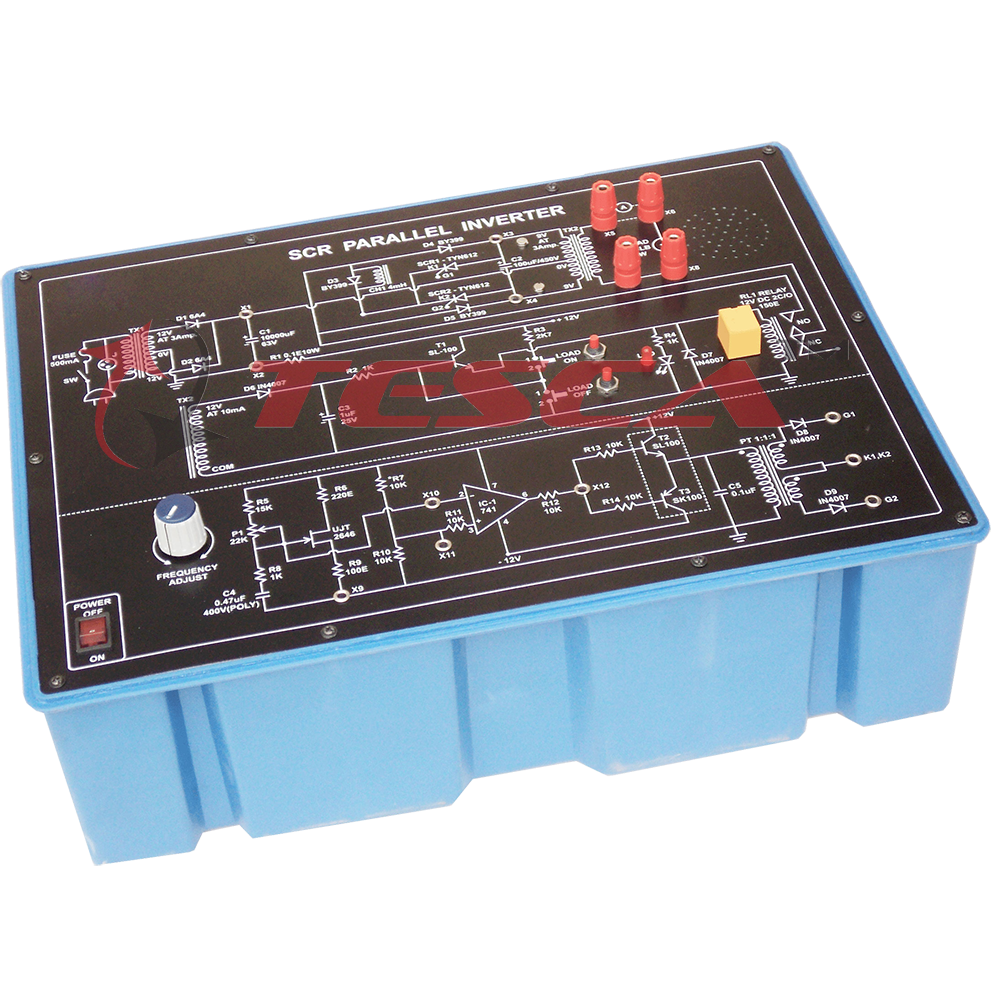

46543 Power Electronic Training Board has been designed specifically for the study of SCR Parallel Inverter. Practical experience on this board carries great educative value for Science and Engineering Students.   Object To study ...



SPECIFICATION

46543 Power Electronic Training Board has been designed specifically for the study of SCR Parallel Inverter.
Practical experience on this board carries great educative value for Science and Engineering Students.



Object

  1. To study the SCR Parallel Inverter.



Features
The board consists of the following built-in parts:

  1. 12V DC at 100mA fixed regulated Power Supply.
  2. 12V DC at 3 Amp. Power Supply.
  3. 9 - 0-9 V AC at 3 Amp. transformer
  4. UJT to generate ramp.
  5. IC-1 to drive Tr. 4 and Tr. 5.
  6. Tr. 4 and Tr. 5 for generation of pulses.
  7. Pulse transformer 1:1:1.
  8. Tr. 1, 2 and 3 for relay operation.
  9. Two SCRs.
  10. Two push-to-ON switches for putting invertor ON/OFF.
  11. Relay 12V DC.
  12. 25 watt. Lamp with Socket.
  13. Adequate no. of other electronic components.
  14. Mains ON/OFF switch, Fuse and Jewel light.
  15. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
  16. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for     connections/ observation of waveforms.
  17. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
  18.  Weight : 7.500 Kg. (Approx.)
  19. Dimension : W 415 x H 165 x D 315


Other Apparatus Required:

  1. Dual trace CRO 20MHz with isolation transformer for unearthing.
