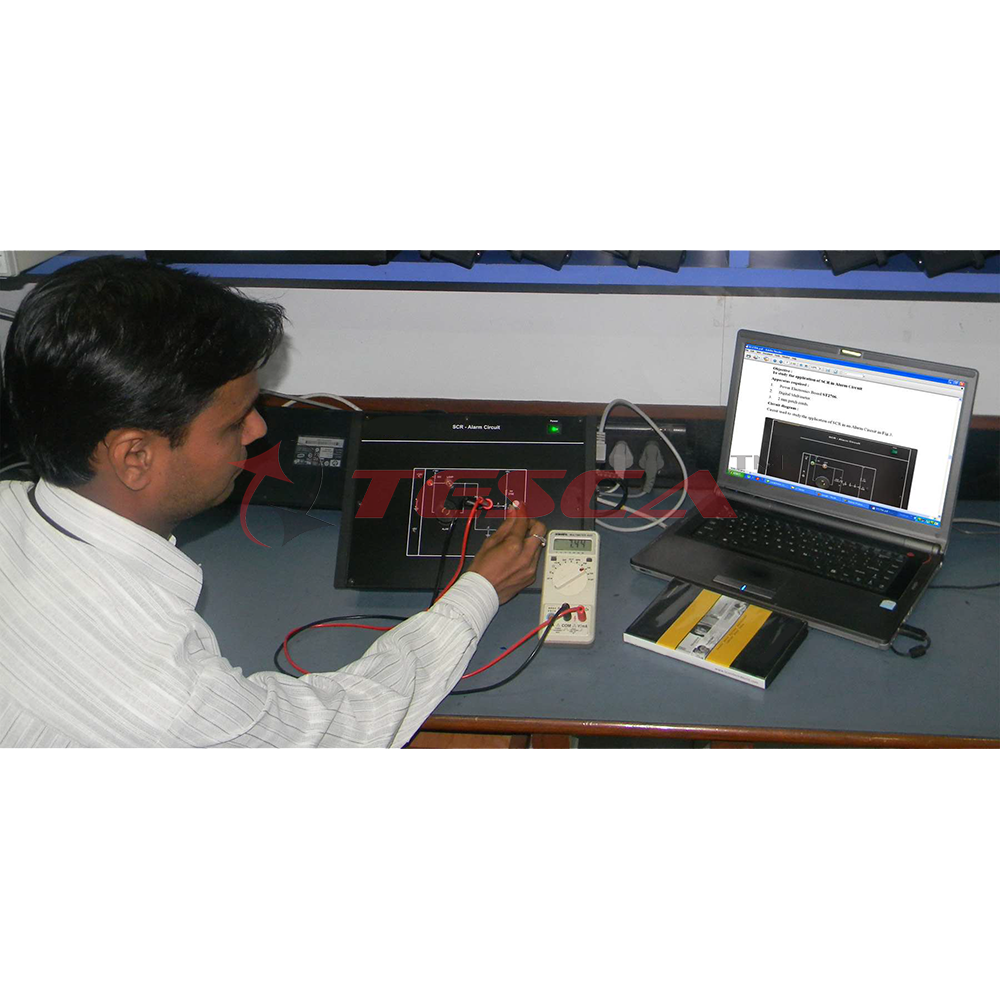

SCR Alarm Circuit

Order Code: 46911

Category: Electrical Machine Lab

46911 is a platform which is very useful Students to understand the low voltage application of the SCR in alarm control. 2706 is provided with the built in power supplies, sockets for making different interconnections in the circuit and exhaustive le...



SPECIFICATION

46911 is a platform which is very useful Students to understand the low voltage application of the SCR in alarm control. 2706 is provided with the built in power supplies, sockets for making different interconnections in the circuit and exhaustive learning material.

Features

  1. Built in Power Supply
  2. Easy to operate and understand
  3. Sockets to make different connections
  4. On board circuit supply cut switch

Object

  1. Study of the application of SCR in alarm

Technical Specifications

  • On board DC supply          : +5 V, +12 V
  • On board circuits                  : Alarm circuit
  • Interconnection                     : 2 mm socket
  • Gate voltage variation           : Gradually variation of gate voltage
  • SCR                                      : SCR TYN616, 600V/16A
  • Dimensions (mm)                 : W 420 x D 255 x H 100
  • Power Supply                       : 110V - 260V AC, 50/60Hz
  • Weight                                  : 1 Kg. (approximately)
  • o Operating Conditions         : 0-40 C, 85% RH

Included Accessories :

  1. 2mm Patch cord 16” : 2 nos.
  2. Mains cord : 1 no.
