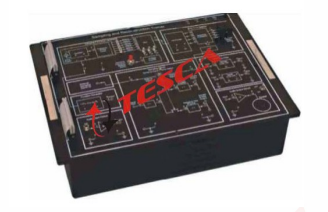

Sampling & Reconstruction Technique
Order Code: 24257623.8
Category: General Lab Equipment V
The set up should have an onboard pulse generator, analog signal generator, power supply, second order and fourth order low-pass filters, audio input and output links to show transmission and reception of real-time signal. Should have the following t...
SPECIFICATION
The set up should have an onboard pulse generator, analog signal generator, power supply, second order and fourth order low-pass filters, audio input and output links to show transmission and reception of real-time signal. Should have the following technical specifications:
- Crystal Frequency: 8 MHz
- Sampling Frequency: 20, 50, 80, 100, 200 & 400 KHz (switch selectable)
- On board Generator: Synchronized 1 KHz sine wave (5 V)
- Cut-off frequency: 3.4 KHz each
- Test Point: 40 nos, or more.
Should be able to perform experiments for the study of Sampling and Reconstruction techniques, Sample amplifier, and Sample and Hold amplifier on reconstructed signal, effect of Sample / Hold Circuitry on reconstructed waveform.
