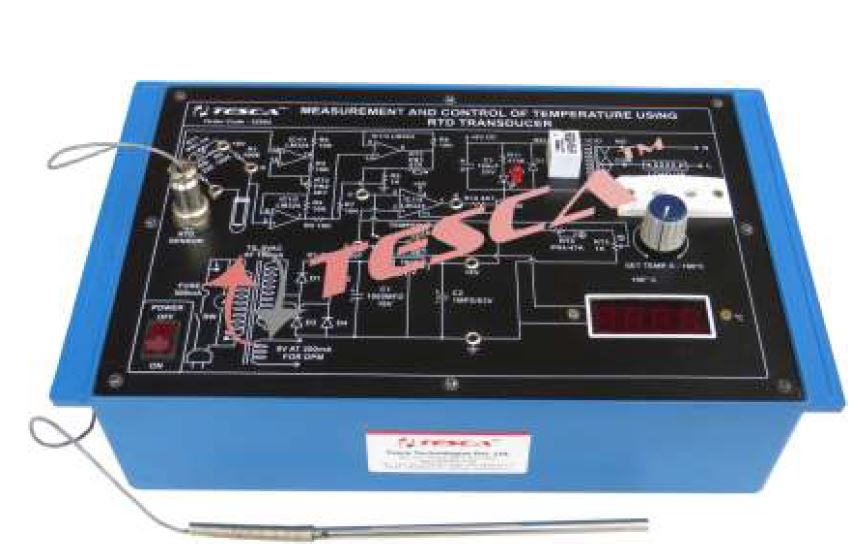

RTD Transducer Trainer Kit- for temperature measurement
Order Code: 23246870.10
Category: General Lab Equipment II
Industrial Control Transducer has been designed specifically for measurement and control of temperature using RTD Transducer. The board require other apparatus like heater and beaker. Practical experience on this set up carries great educative value...
SPECIFICATION
Industrial Control Transducer has been designed specifically for measurement and control of temperature using RTD Transducer. The board require other apparatus like heater and beaker.
Practical experience on this set up carries great educative value for Science and Engineering Students.
Object:
Measurement and control of temperature using RTD transducer
Feature:
The unit consists of following built in parts :
01. ±12V DC at 100 mA, IC Regulated Power Supply
02. 6 V DC at 100 mA, IC Regulated Power Supply
03. Implementation of Wheatstone Bridge in Temperature Control System
04. Four Op-Amp. ICs
05. Relay 12 V DC, one change over
06. One NPN transistor
07. 31/2 digits display panel meter, to display temperature in ºC
08. RTD sensor with 3 pin connector
09. One switch for setting temperature on one side and to read actual temperature on other side
10. Potentiometer to control temperature
11. AC mains socket to connect load whose temperature is to be controlled
12. Adequate no. of other Electronic Components
13. Mains ON/OFF Switch and Fuse 400 mA
- The unit is operative on 230V ±10% at 50Hz AC Mains
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
- Strongly supported by detailed Operating Instructions, giving details of Object Theory, Design, Procedures, Report Suggestions
