Robotic arm
Order Code: 24258358.22
Category: General Lab Equipment V
Product Overview The Ready-to-Assemble 6 DOF Programmable Robotic Arm Kit is a desktop-sized, general-purpose robotic arm constructed from high-quality metal components. Ideal for industrial training, school/college projects, and prototype developme...
SPECIFICATION
Product Overview

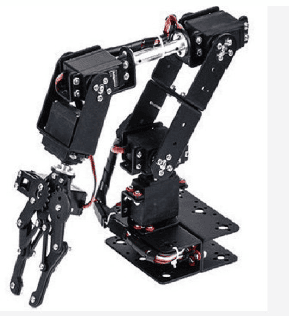

The Ready-to-Assemble 6 DOF Programmable Robotic Arm Kit is a desktop-sized, general-purpose robotic arm constructed from high-quality metal components. Ideal for industrial training, school/college projects, and prototype development, this kit offers flexibility, hands-on assembly, and customization options.
Assembly & Customization Notes
-
Self-Assembly Required: The kit is supplied unassembled and requires user assembly.
-
Included Servos: Comes with economy series servo motors (MG995/996/946) – suitable for general applications but not recommended for high-torque tasks.
-
Customization Available: High-torque servo options can be provided upon request. Please contact us before placing your order for any customization needs.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Mechanical Robotic Arm |
| Color | Black |
| Working Voltage | 4.8V – 7.2V |
| No-load Current | 100 mA |
| Machine Torsion | 10 kg.cm |
| Limit Angle | 180° |
| Wire Length | 30 cm |
| Gear Material | Metal |
| Dead Time | 5 μs |
| Steering Gear Performance | General |
| Order Code | 24258358.22 |
Package Contents
-
6 x Servo Motors (MG995 / MG996 / MG946)
-
1 x Cable Tie Pack (5 pcs)
-
1 x Mechanical Arm Assembly
-
1 x Flange Rod
-
3 x Flange Bearings
-
6 x Metal Servo Horns
-
1 x Beam
-
1 x U-Shaped Bracket (Different Type)
-
2 x L-Shaped Brackets
-
2 x Long U Brackets
-
4 x Multi-Function Brackets
-
3 x Servo Extension Cords
-
Screw & Nut Fittings
