Robot Kits

Order Code: 24258369.7.1

Category: General Lab Equipment V

Overview This high-performance robotic platform is designed for research, automation, and navigation applications. With a compact and lightweight design, it offers smooth mobility, precise control, and efficient power consumption. Equipped with adva...



SPECIFICATION

Overview
This high-performance robotic platform is designed for research, automation, and navigation applications. With a compact and lightweight design, it offers smooth mobility, precise control, and efficient power consumption. Equipped with advanced sensors, a powerful embedded controller, and a Raspberry Pi for computation, this robot can perform complex autonomous operations, making it ideal for AI, SLAM, and robotic learning environments.
Key Features

  • • Compact & Lightweight – Designed for easy mobility and transport.
  • • High-Precision Motion Control – DYNAMIXEL actuators ensure smooth and accurate movement.
  • • 360° Perception – Equipped with a high-resolution LIDAR sensor for real-time mapping and obstacle detection.
  • • Integrated IMU – Includes a 3-axis gyroscope, accelerometer, and magnetometer for accurate positioning and motion tracking.
  • • Powerful Computing – Features a Raspberry Pi SBC for advanced processing and machine learning applications.
  • • Efficient Battery Management – Provides up to 2.5 hours of operation with a similar charging time.
  • • Expandable & Customizable – Compatible with additional sensors, communication modules, and robotic arms for extended applications

Technical Specifications
General Specifications

  • Maximum Translational Velocity :  0.22 m/s
  • Maximum Rotational Velocity :  2.84 rad/s (162.72°/s)
  • Maximum Payload :  15 kg

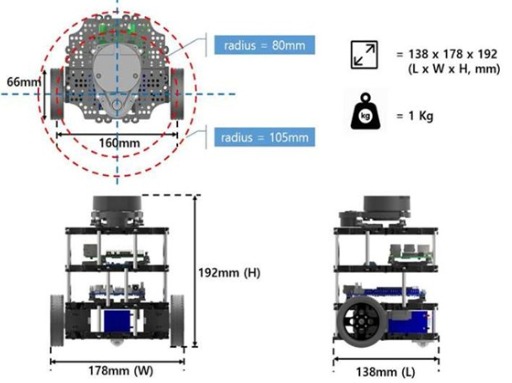

  • Dimensions (L × W × H)  : 138 mm × 178 mm × 192 mm
  • Weight (Including SBC, Battery & Sensors)  : 1 kg
  • Operating Time Approx.  : 2 hr 30 min
  • Charging Time Approx. :  2 hr 30 mi
  • Electronic & Control System
  • Actuators  : DYNAMIXEL XL430-W250-T
  • Single Board Computer (SBC)  : Raspberry Pi
  • Embedded Controller :  OpenCR (32-bit ARM® Cortex®-M7)

Sensors & Perception

  • LIDAR  : 360° Scanning LIDAR
  • IMU (Inertial Measurement Unit)   : 3-Axis Gyroscope, 3-Axis Accelerometer, 3-Axis Magnetometer
