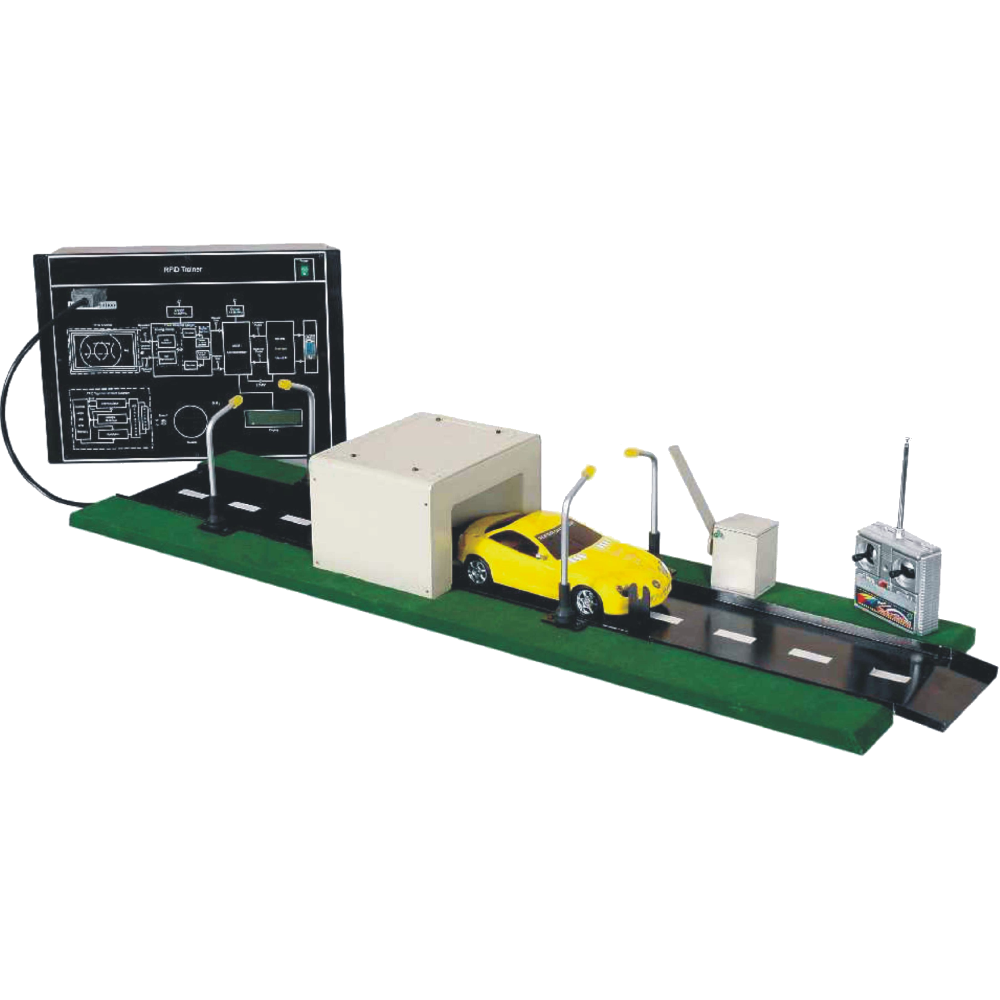

Rfid Trainer With Training

Order Code: 19204659.10

Category: General Lab Equipment III

Technical Specifications: Operating Frequency : 13.56 MHz Modulation Type : ASK Operating Range : Less than 10 cm Protocol Support : ISO 14443A  ISO 14443B  ISO 15693 Application Software : This programme helps ...



SPECIFICATION

Technical Specifications:

  • Operating Frequency : 13.56 MHz
  • Modulation Type : ASK
  • Operating Range : Less than 10 cm
  • Protocol Support : ISO 14443A
    1.  ISO 14443B
    2.  ISO 15693
  • Application Software : This programme helps the students to understand the attendence records by using RFID technology
  • Supply Voltage : 3.3 V for controller and Reader, 5 V for LCD display
  • Micro Controller : 89C51 ED2 with 256 KByte RAM and 64 KByte ROM
  • Antenna : Inductively coupled coil type
  • Power Supply : 230 V ± 10%, 50 Hz
  • Fuse : 250 m
  • RFID Application Demonstrator
  • 01 RFID Security System
  • 02 RFID Toll Tax
  • Highly integrated analog circuitry to Demodulate,
  • Decode and Respond
  • 3.56 MHz multiprotocol support
  • Provided with LCD and software
  • RS-232 Interface
  • On board LED Indication
  • On board Buzzer indication
  • On board Antenna
  • Provided with application program software
  • Test points are provided to observe the signals
