Feature:

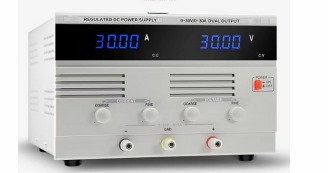

1. This serial single output switch power supply is a kind of DC regulated power supply with high efficiency and stability.
2. It can be acted both as constant voltage as well as constant current dc power supply.
3. For this serial power supply, it has perfect protection circuit, can be used in many areas.
4. Single phase, single output dc power supply; Constant voltage and constant current operation Both current and voltage can be adjusted from 0 to rated value;3LED digital display; Built-in EMI filter.(have anti-interference circuit); Intelligent temperature control fan to help power supply cooling fast;

Applications:

Charge batteries, PCB board manufacturing industry/motors, LED products, and dc fans test/electro facing, electrolyzation, electronic components ageing/laboratory, Electronic equipment, automatic Test Equipment/All other occasions need to use DC Power Supply. Protection function: Over voltage protection; Over load protection; Over temperature protection; Current limitation protection.

Technical Specifications:

1. Input voltage: single-phase 220V±10% 50Hz or 110V±10% 60Hz
2. Working conditions: -10 C -40 C relative humidity :< 90%
3. Storage conditions: -20 C-80 C relative humidity :< 80%
4. Output voltage: 0-30V adjustable
5. Output current: 0-30A adjustable
6. Display Accuracy: ±1%±1 digit
7. Voltage stabilization: ≤0.5%
8. Current stabilization: ≤0.8%
9. Load stabilization: ≤0.5%
10. Ripples and noises: ≤1 %( RMS)
11. Surge Current: 30A/115V, 60A/230V (cold-start)
12. Input Leakage Current: < 0.7mA/230V
13. Withstanding voltage test: From input to output voltage: 1.5KVAC/min From input voltage to case: 1.5KVAC/min From output voltage to case: 500VAC/min
14. Dimension: Approx.470x320x220 mm.
