Refractive index of prism using (i-d) curve (C.R.)

Order Code: 55755

Category: Physics Trainers

  55755 Experimental Set Up has been designed specifically for the Study of the Variation of Angle of Deviation with Angle of Incidence & Determination of Refractive Index of Prism using (i-d) curve. The set-up consists of Spectrometer, M...



SPECIFICATION


55755 Experimental Set Up has been designed specifically for the Study of the Variation of Angle of Deviation with Angle of Incidence & Determination of Refractive Index of Prism using (i-d) curve. The set-up consists of Spectrometer, Mercury light source, Prism, Reading lens etc.
The set up is complete in all respect and requires no other apparatus. Practical experience on this set up carries great educative value for Science and Engineering Students.

OBJECT
  1. Study of the variation of angle of deviation with the angle of incidence and to determine the refractive index of  the material of the prism using (i-d) curve for a given wavelength using Spectrometer.

FEATURES

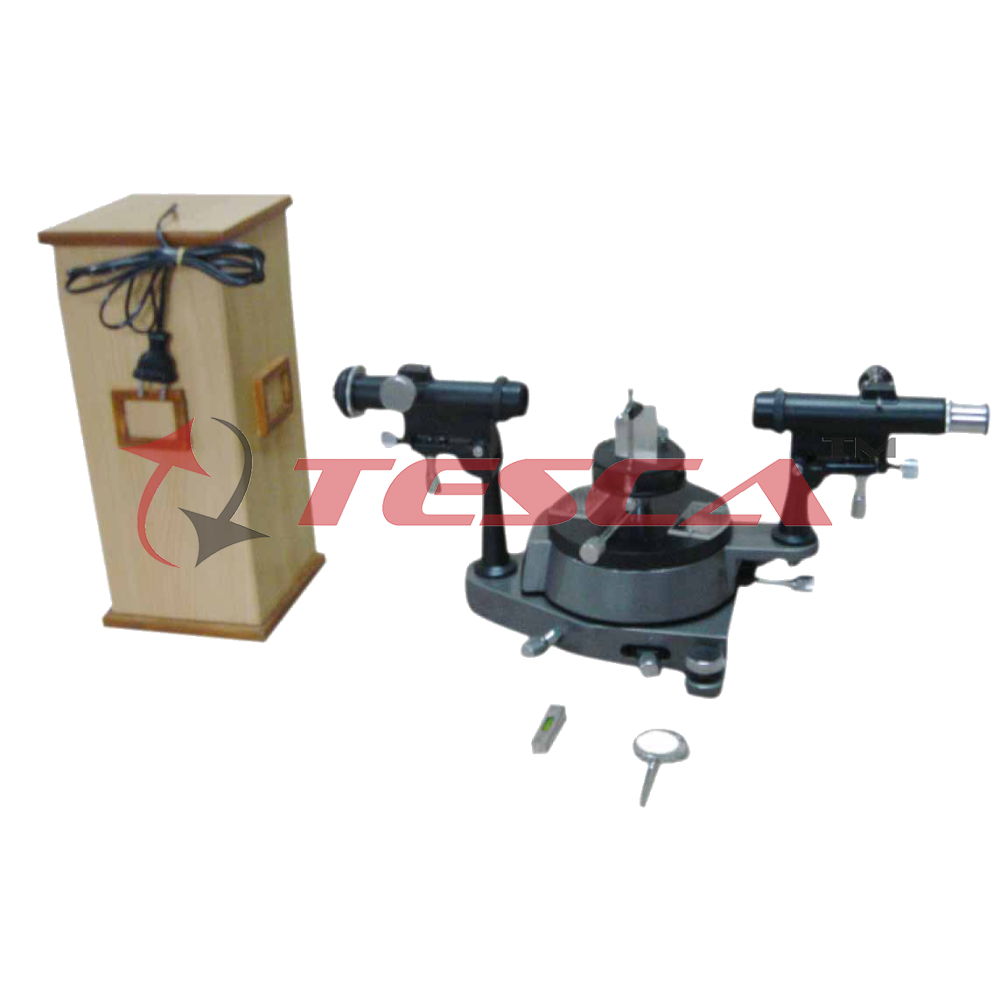

The complete Experimental Set-up consists of the following :
  1. Spectrometer standard : 6" dia circle reading 30 seconds. The objectives used in telescope and collimator are achromatic and provided with rack and pinion focusing arrangement. Telescope arm and prism table are provided with fine and coarse adjustment. The prism table is provided with three leveling screws and is engraved with concentric rings & lines. The scales and verniers are of stainless steel and are machine divided. Clamping devices are also provided to lock telescope and collimator after adjustment, with prism clamping device and diffraction grating stand.
  2. Mercury light source : Complete with Mercury Vapour lamp 80W along with choke & wooden box with holes with slide covers one each on three sides.
  3. Prism : Optically worked with two faces polished, Equilateral, size 38mm x 38mm.
  4. Reading lens : 40/50mm diameter with handle.
  5. Sprit Level : 60/80mm length.
  6. Weight : 13.6 Kg. (Approx.)
  7. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
