Order Code: 24258406.5
Category: General Lab Equipment V
General Specifications: Power Requirement: 5V/3.0A via USB Type-C connector. Operating System Compatibility: Supports Raspberry Pi OS; check for compatibility with third-party operating systems. Technical Specifications: ...
General Specifications:
Power Requirement: 5V/3.0A via USB Type-C connector.
Operating System Compatibility: Supports Raspberry Pi OS; check for compatibility with third-party operating systems.
Technical Specifications:
Processor: Broadcom BCM2711, 64-bit ARM Cortex-A72 (ARMv8), Quad-core, 28nm Processor SoC running at 1.5GHz, with a metal body for enhanced heat dissipation.
Memory: 8GB LPDDR4 SDRAM.
USB Ports:
2 x USB 3.0 Ports
2 x USB 2.0 Ports
GPIO Header: Expanded 40-pin GPIO header.
Video/Audio Output:
4-pole 3.5mm audio/video connector.
2 x Micro HDMI ports, supporting 4Kp60 video and dual display.
Raw LCD (DSI) interface.
Image/Camera Input:
CSI port for camera interface.
Storage:
MicroSD card slot.
Networking:
True Gigabit Ethernet, supporting speeds greater than 900 Mbps.
Power-over-Ethernet (PoE) support (requires separate PoE HAT).
Wireless Connectivity:
2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN.
Bluetooth 5.0 and BLE (Bluetooth Low Energy).
Low-Level Peripherals:
27 x GPIO pins.
UART (Universal Asynchronous Receiver-Transmitter).
I2C bus.
SPI bus with two chip selects.
+3.3V, +5V, and Ground pins.

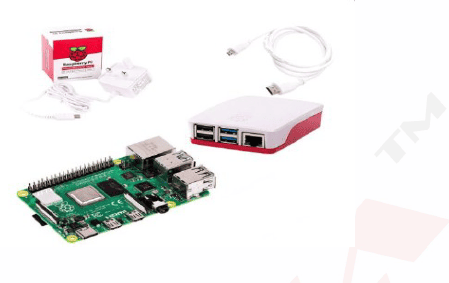

Accessories Included:
1 x Micro-HDMI to Standard HDMI Cable.
1 x USB MicroSD Card Reader/Writer.
1 x 15W 5V 3A Official USB-C Power Adapter.
1 x 32GB MakerDisk MicroSD Card pre-loaded with Raspberry Pi OS.
Warranty:
Minimum 2 years, covering parts, labor, after-sales service, and support from the date of successful installation, commissioning, and handover.
