QPSK/DQPSK Demodulation Trainer

Products Categories

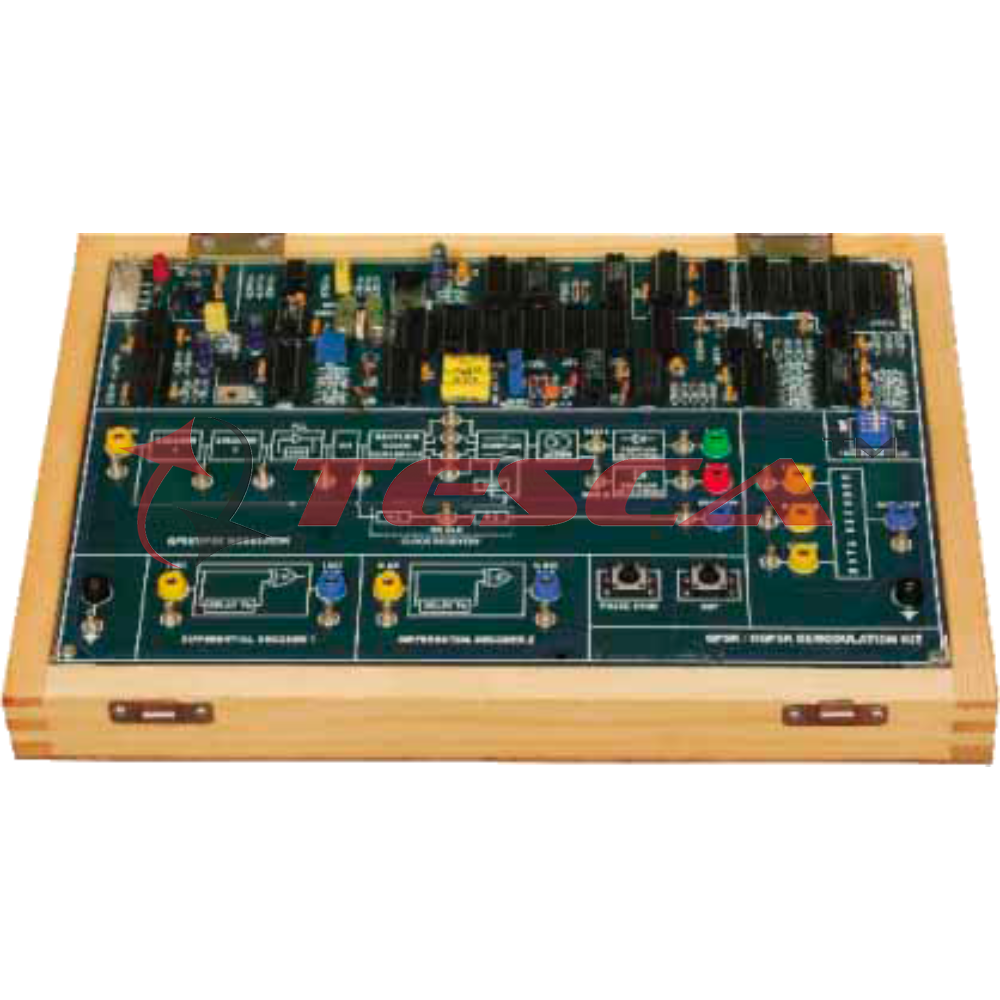

QPSK/DQPSK Demodulation Trainer

Order Code: 40621

Order Code-40621 is an Advance Digital Communication Trainer System that helps one under stand various Digital Modulation and Demodulation Techniques. Various functional block diagrams are provided on-board as an aid for Teaching/Train...

SPECIFICATION

Order Code-40621 is an Advance Digital Communication Trainer System that helps one under stand various Digital Modulation and Demodulation Techniques. Various functional block diagrams are provided on-board as an aid for Teaching/Training. These Kits are provided with various Test Points to visualize the signals on Oscilloscopes.

FEATURES:

Dibit Pair, Differential Encoding type DataFormat for decoding.
Receiver Clock generated by PLL method.
Switch faults are provided to study its effects on circuits.
Block Description screen printed on PCB.
In-Built Power Supply.

SPECIFICATIONS:

Data Format (De-Coding)
- Dibit Pair (I & Q), Differential Encoding of I & Q Bits.
Carrier Demodulation Techniques
- DPSK Demodulation
- DQPSK Demodulation
On-board features
- Receiver Clock generated by PLL method
- Switch Faults are provided on board to study different effects on circuit
- Block Description Screen printed on glassy epoxy PCB
Interconnections
- All interconnections are made using 2mm banana Patch cords.
Test points are provided to analyze signals at various points.
All ICS are mounted on IC Sockets.
Bare board Tested Glass Epoxy SMOBC PCB is used.
In-Built Power Supply of 5V/1.5A, ±12V/250mA with Power
ON indication
Attractive enclosure
Set of 2mm Patch cords for interconnections
User's Manual with sample experiments programs.
