Product Introduction

• The product adapts the original vehicle components, which can truly present the composition of the system and the shape of each component, 2, The detection panel is tiled, and the terminal arrangement diagram of the original car wiring harness connector is printed with UV en the detection panel.
• The training platform converts the protocol data information through the US8 device to realize MINIPC data transmission.
• The equipment is equipped with a 21.5-inch high-definition multimedia display screen and equipped with an intelligent teaching system to facilitate better teaching and learning far teachers and students
• The product can measure the electrical signals of low-voltage lines, and students can use multimeters, oscilloscopes and other equipment to detect each test point.

Functional Characteristics

• After each training platform is connected with other system training platforms, demonstrate the operating principle and control mode of the training platform.
• Demonstrate the working principle and control process of each system 3, Realize the view and detection of the composition and structure of each system
• Understand the operating characteristics and diagnostic methods of each system through the teaching board Realize system fault setting and diagnosis analysis
• Master the safety operation specifications for each system maintenance

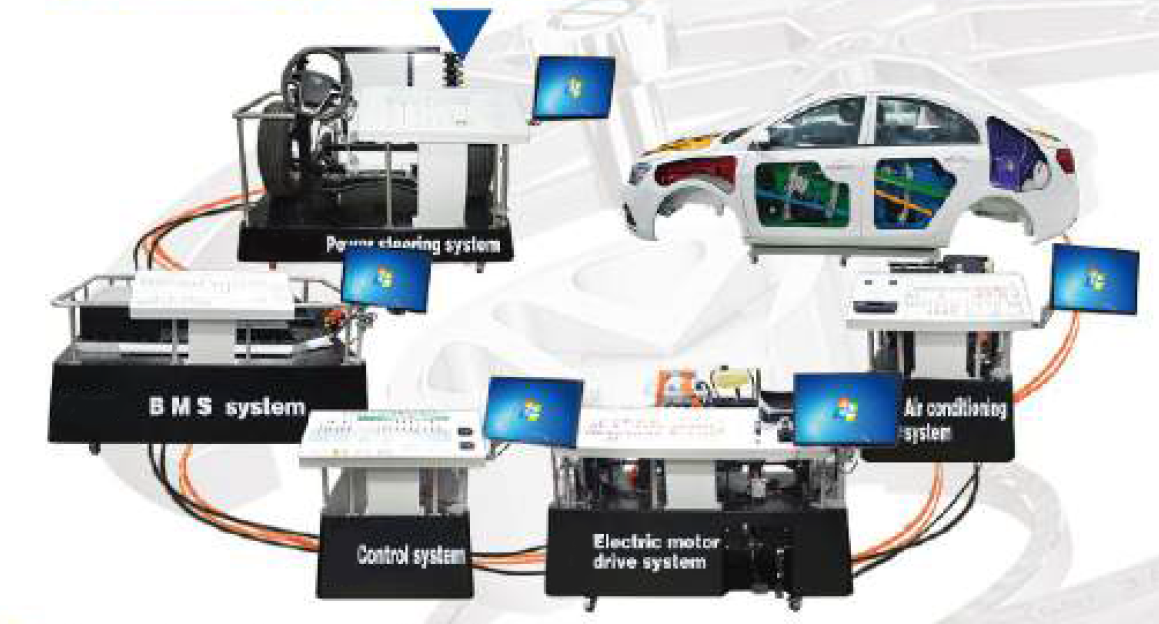

Product Composition
Module 1: BMS system module
Module 2: Control system module
Module 3: Electric motor drive system module
Module 4: Air conditioning system module
Module 5: Power steering system module
Module 6: Whole electrical system module
