Product Introduction

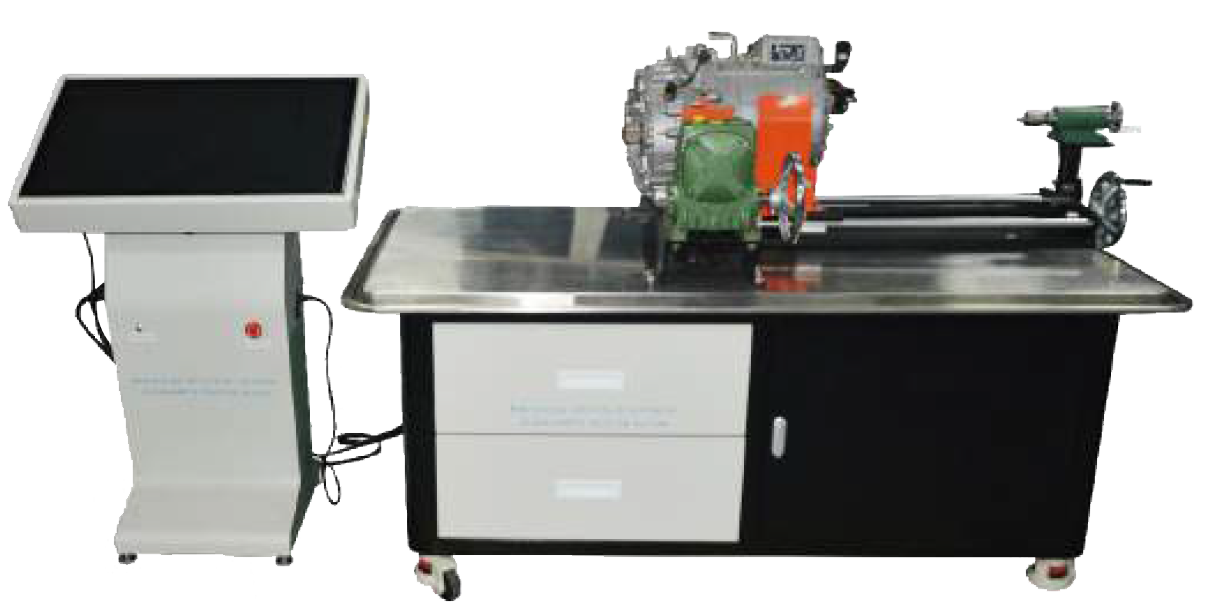

1. The training platform is developed around the new energy vehicle motor and control system, and is equipped with a vehicle motor controller and a high-voltage distribution box.
2. The platform is designed with a screw mechanism for separating the motor from the gearbox and a 360" random flip structure of the gearbox, which makes the disassembly and assembly of the power train easy and fast.
3. The motor type is a three-phase permanent magnet AC synchronous motor, the maximum output torque of the motor is 310N.m, the rated torque is T60N.m, the maximum input power is 160kW, the rated power is 80kW, and the maximum output speed is 12000rpm.

Functional Characteristics

1. The driving energy supply platform is equipped with a 21.5-inch super large touch liquid display
2. Equipped with a car-level motor controller, after the device is powered on, it can dynamically display the forward and reverse state of the motor.
3. Supporting super large storage drawers, the drawers are fixed by solid double-row ball silent buffer damping guide rails, smooth pulling and strong balance
4. The platform is equipped with a motor line interface, a motor resolver sensor interface and a ground wire interface, which can be easily connected to an intelligent information collection and detection box to supply power to the motor.
5. The equipment is equipped with motor three-phase voltage signal and motor resolver signal detection point, and the signal waveform can be diagnosed and analyzed with the help of oscilloscope and other equipment.

Technical Specifications

1. Powertrain disassembly and assembly training platform, intelligent information collection and detection box, drive energy supply platform, three-phase high-woltage connection cable, low-voltage communication

connection cable
