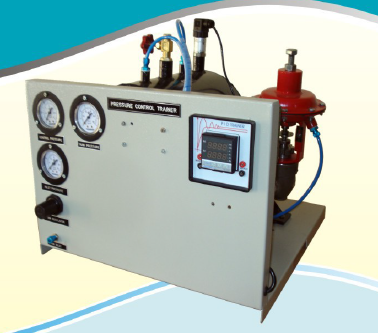

Pressure Control Training System Stand Alone With Remote Distance Learning Facility

Order Code: 20214003.3

Category: General Lab Equipment II

Fundamentals of pressure control system: Open loop control response. effects of different controller parameters and methods on the response of the closed loop system. Recording of step responses (reference variable , disturbance variable). ...



SPECIFICATION

  • Fundamentals of pressure control system:
  • Open loop control response.
  • effects of different controller parameters and methods on the response of the closed loop system.
  • Recording of step responses (reference variable , disturbance variable).
  • Study of controller optimization.
  • Minimum Technical Specifications Required (like or better than) :-
  • Basic unit with USB port.
  • Diaphragm gas pump : flow rate : 3L/min at least with positive and negative pressure.
  • Pressure  tank : 400 mL at least.
  • Solenoid valve :Kvs :0,11 m3/h.
  • Pressure transducer : 0…1 bar.
  • Manometer : 0…..1 bar.
  • P, PI ,PID and switching controller software.
  • PC computer (Brand name) Core i7 , 8 GB Ram , 1 TB HDD with 18.5".
