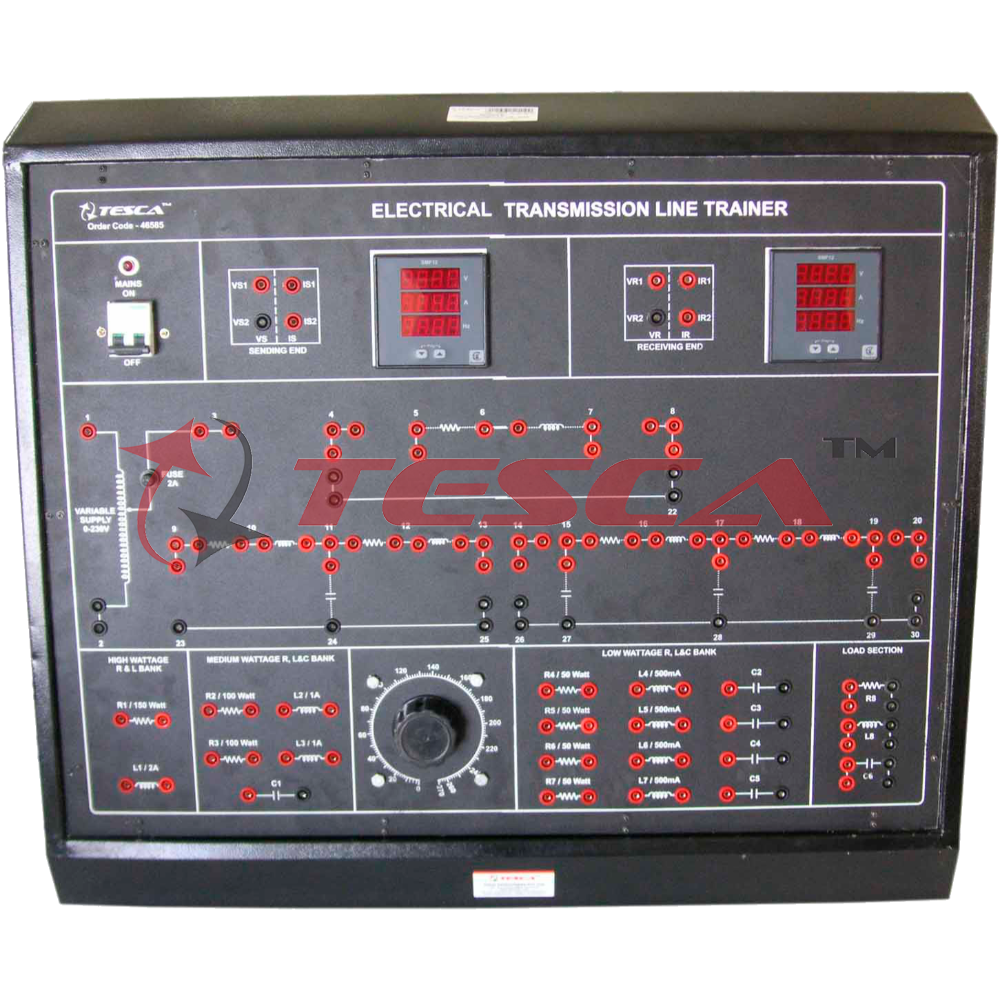

Power Transmission Lines Trainer

Order Code: 22235809.3

Category: General Lab Equipment I

This trainer should offer the possibility to represent short, medium, and long line models as much as possible. It should also offer the possibility of paralleling two transmission lines. The study of compensation of transmission lines is also req...



SPECIFICATION

  • This trainer should offer the possibility to represent short, medium, and long line models as much as possible. It should also offer the possibility of paralleling two transmission lines. The study of compensation of transmission lines is also required. Transmission line protection is necessary. Measuring equipment that measure and display voltages, currents, powers at sending, receiving and intermediate points are necessary.
  • The above unit will be used to:
    • Study single power transmission line and transmission lines in parallel.
    • Study transmission lines compensation methods.
    • Study transmission lines with different loading conditions, including surge impedance loading possibility.
    • Study voltage profile and power loss in transmission lines.
    • Study protection of transmission lines.
