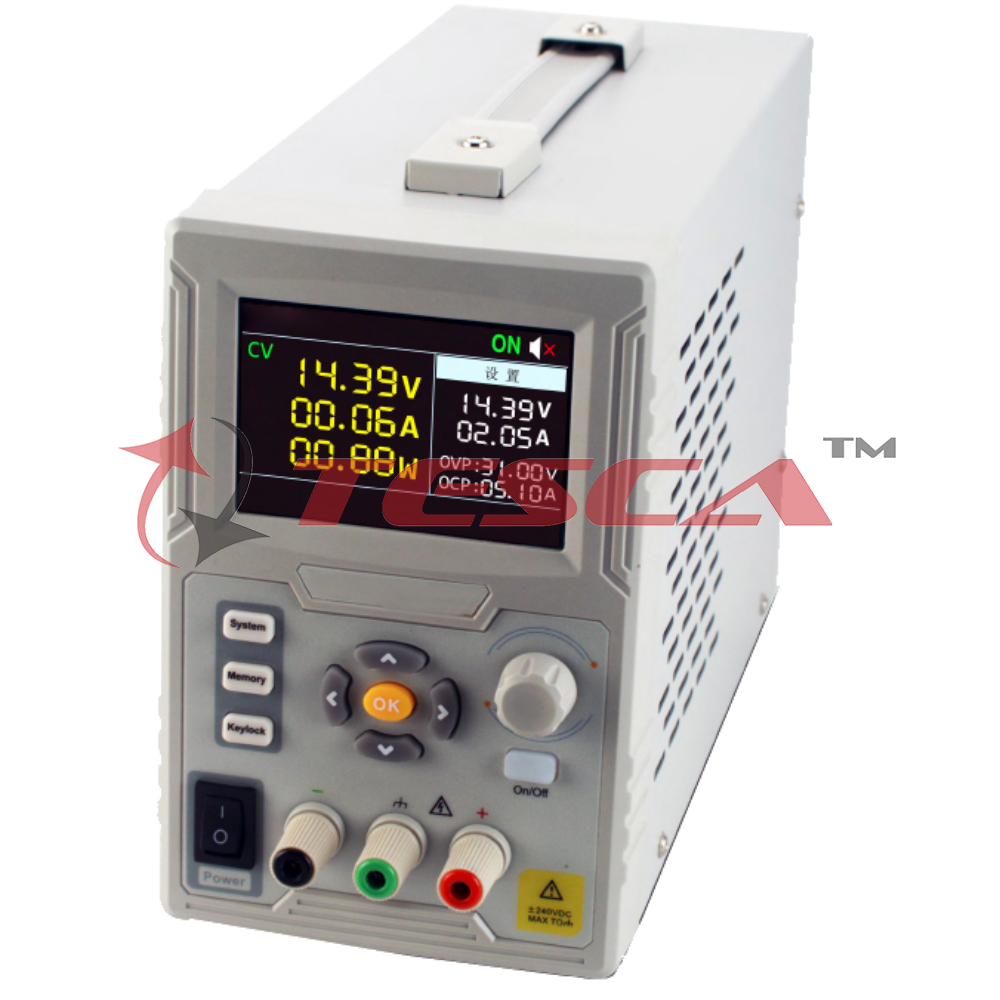

Power Supply Programmable DC, 3.7"Coloured LCD, 0-60V/3A , 150W , USB+RS232+Software
Order Code: PPS-4603
Category: AC/DC Power Supplies
Main feature Small body for easy carry 180W maximum output power High resolution%uFF1A 1mV / 1mA Low ripple/noise Over voltage/over current protection Multi-directional cooling system with smart fan 3.7 inch TFT LCD display ...
SPECIFICATION
Main feature
- Small body for easy carry
- 180W maximum output power
- High resolution%uFF1A 1mV / 1mA
- Low ripple/noise
- Over voltage/over current protection
- Multi-directional cooling system with smart fan
- 3.7 inch TFT LCD display
- Support RS232 digital communication
- Support SCPI and Labview
|
Specifications |
||
|
Channel |
Single Channel Output |
|
|
Total Output Power |
150W |
|
|
Channel Output |
0 - 30V / 0 - 5A × 1-CH |
|
|
Display |
3.7 inch color LCD display |
|
|
Dimension |
117mm(L) × 194mm(H)× 295mm(D) |
|
|
Weight Approx. |
5.6 kg Approx. 5.8 kg |
|
|
Interface |
RS232 |
|
|
The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters. Rated Output (0?-40?) |
||
|
|
Voltage |
0 - 60V |
|
Current |
3A |
|
|
Load Regulation |
||
|
|
Voltage |
≤0.01%+3mV |
|
Current |
≤0.01% + 3mA |
|
|
Power Regulation |
||
|
|
Voltage |
≤0.01% + 3mV |
|
Current |
≤0.01% + 3mA |
|
|
Setting Resolution |
||
|
|
Voltage |
1mV |
|
Current |
1mA |
|
|
Read back Resolution |
||
|
|
Voltage |
1mV |
|
Current |
1mA |
|
|
Setpoint accuracy (within 12 months) (25?±5?) |
||
|
|
Voltage |
≤0.03% + 10mV |
|
Current |
≤0.1% + 5mA |
|
|
Readback Resolution (25?±5?) |
||
|
|
Voltage |
≤0.03% + 10mV |
|
Current |
≤0.1% + 5mA |
|
|
Ripple/Noise (20Hz-20MHz) |
||
|
|
Voltage (Vp-p) |
≤4mVp-p |
|
Voltage (rms) |
≤1mVrms |
|
|
Current (rms) |
≤4mArms |
|
|
Output temperature coefficient (0?-40?) |
||
|
|
Voltage |
≤0.03% + 10mV |
|
Current |
≤0.1% + 5mA |
|
|
Readback temperature coefficient |
||
|
|
Voltage |
≤0.03% + 10mV |
|
Current |
≤0.1% + 5mA |
|
|
Response Time |
100 ms |
|
|
Storage |
5 groups of data |
|
|
Working Temperature |
0-40? |
|
