Power Electronics Training System Laboratory

Order Code: 23246494.2

Category: General Lab Equipment I

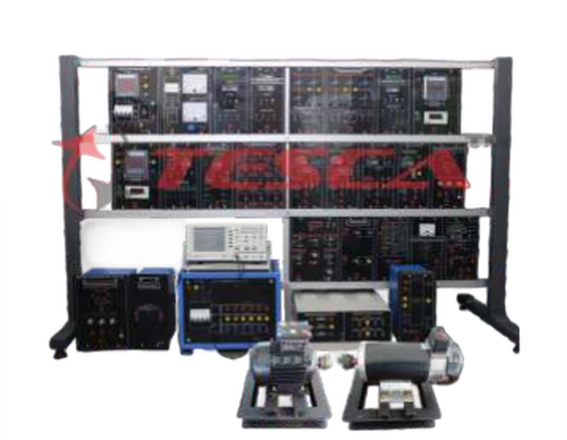

The Power Electronics Training System consists of 28 experimental modules, a three-phase squirrel cage motor, load, control and measuring devices. It includes single-phase rectifiers, three-phase rectifiers, DC choppers, inverters and application exp...



SPECIFICATION

The Power Electronics Training System consists of 28 experimental modules, a three-phase squirrel cage motor, load, control and measuring devices. It includes single-phase rectifiers, three-phase rectifiers, DC choppers, inverters and application experiments:

1. Basic Measurement and Characteristic of SCR and TRIAC

1-1: Three-Phase Source Voltage Measurement
1-2: Digital Storage Oscilloscope and Differential Amplifier
1-3:SCR characteristics and measurement
1-4: TRIAC characteristics and measurement

2. Single-Phase Rectifiers and AC Voltage Controller (AC→DC?AC→AC)

2-0: Trigger Pulse Measurement
2-1: Single-Phase Half-Wave Uncontrolled Rectifier
2-2: Single-Phase Full-Wave Uncontrolled Rectifier
2-3: Single-Phase Half-Wave Controlled Rectifier
2-4: Single-Phase Full-Wave Controlled Rectifier
2-5: Symmetrical Single-Phase Full-Wave Semi-Controlled rectifier
2-6: Asymmetrical Single-Phase Full-Wave Semi-Controlled rectifier
2-7: Single-Phase Semi-Controlled AC voltage controller
2-8: Single-Phase Full -Controlled AC voltage controller

3. Three-Phase Rectifiers and AC Voltage Controller(AC→DC?AC→AC)
3-1: Three-Phase Half-Wave Uncontrolled Rectifier
3-2: Three-Phase Full-Wave Uncontrolled Rectifier
3-3: Three-Phase Half-Wave Controlled Rectifier
3-4: Three-Phase Full-Wave Semi-Controlled Rectifier
3-5: Three-Phase Full-Wave Full-Controlled Rectifier
3-6: Three-Phase Full-Wave Semi-Controlled AC voltage controller
3-7: Three-Phase Full-Wave Full-Controlled AC voltage controller
