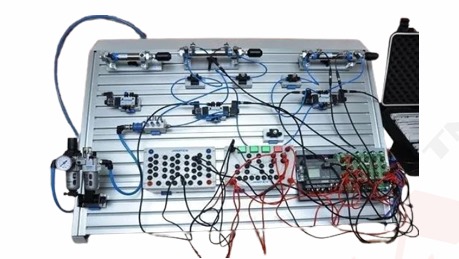

Pneumatic Trainer
Order Code: 24258241.2
Category: General Lab Equipment V
Principles of pneumatics Construct a circuit with single acting cylinders Fit and adjust a service unit Control the speed of single acting cylinders Construct a circuit controlled from two point ...
SPECIFICATION
-
Principles of pneumatics
-
Construct a circuit with single acting cylinders
-
Fit and adjust a service unit
-
Control the speed of single acting cylinders
-
Construct a circuit controlled from two point
-
Control the speed of a double acting cylinder
-
Design and construct a pneumatic circuit
-
Set pressure sequence valves
-
Construct and set a circuit with time-delay valve
-
Pneumatic equipment required
-
Schematic diagrams for each module and a complete set of magnetic symbols
-
Two 3/2 way valves normally open (manually operated)
-
Two 3/2 valves normally closed (manually operated)
-
Two 3/2 way valves detent lock (on-off)
-
Two single acting cylinders (spring loaded)
-
One service unit
-
Two one way flow control valves
-
One quick exhaust valve with silencer
-
One flow control valve
-
One check valve
-
One shuttle valve
-
One two pressure valve
-
Four pressure gauges
-
Two double acting cylinders
-
Two 4/2 way control valves (push button)
-
Two 4/2 way control valves (detent lock)
-
Two 4/2 way impulse valves or 5/2 way impulse valves
-
Two 3/2 way valves (roller operated)
-
One 3/2 way valve (roller operated with idler return)
-
Two 3/2 way valve (manual operated/spring reset)
-
One 4/2 way valve or 5/2 way valve (impulse control/spring reset)
-
Two 3/2 way valve (pressure sequence variable)
-
One normally closed time delay valve
-
Training panel each individual component fitted with base plate for mounting on the pneumatic training panel and fittings to couple pneumatic pipes
