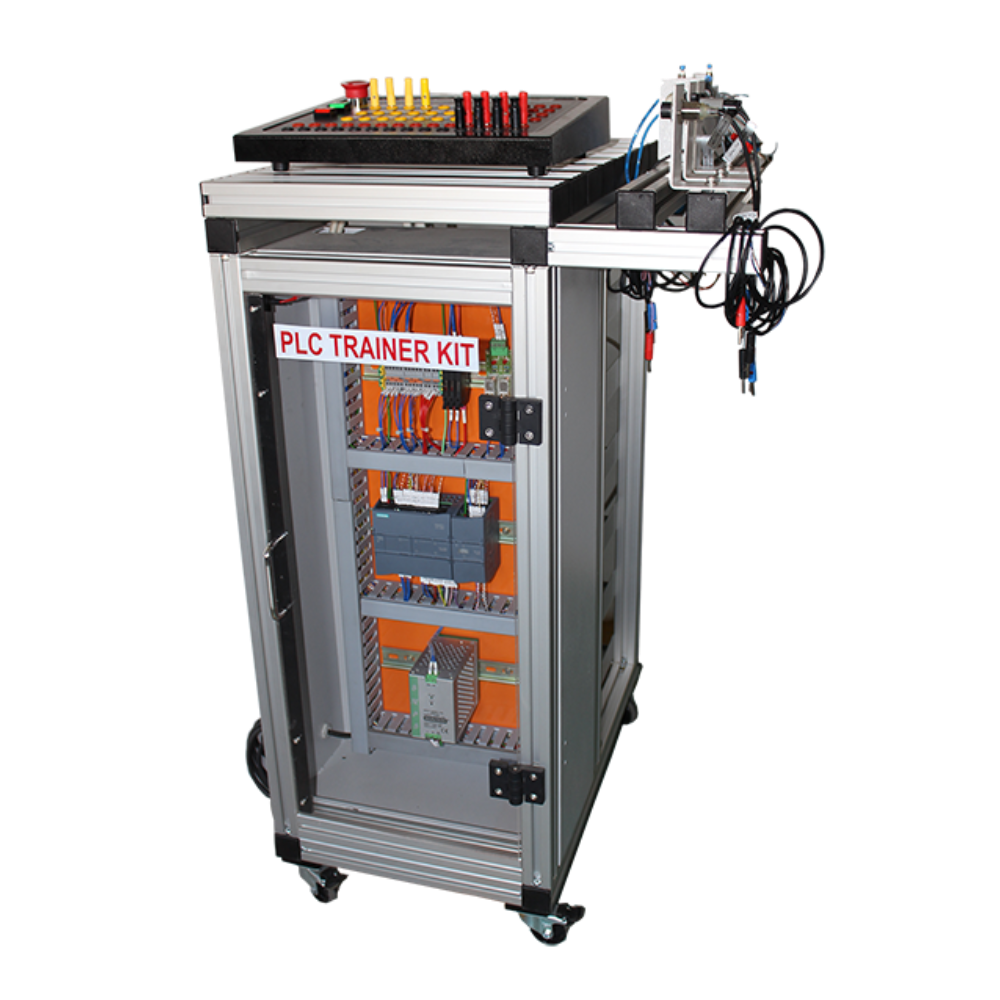

PLC Trainer with sensors

Order Code: 20214410.1.18

Category: General Lab Equipment III

The PLC of this equipment adopts Siemens (Industrial Type) PLC. In addition, it install relay , button, indicator light, DC10V and DC24V power, can finish PLC commonly used programming instructions learning and training, PLC typical application proje...



SPECIFICATION

The PLC of this equipment adopts Siemens (Industrial Type) PLC. In addition, it install relay , button, indicator light, DC10V and DC24V power, can finish PLC commonly used programming instructions learning and training, PLC typical application project training.

  1. Experiment box technical index
    1.  Size: 400mm *250mm *120mm, weight: 2.5kg
    2.  Main power supply: single-phase AC220V voltage, frequency 50/60Hz,
    3. Power <150VA
    4.  Experiment power supply
    5. DC10V power supply :Capacity 0.5A?
    6. DC24V power output : Capacity 1A?
    7.  Adjustable potentiometer :10K
    8.  Relay:10pcs, DC24V coil, normal open contactor output
    9.  Button: 8pcs without lock,6pcs with lock
    10.  Indicator lamp:10pcs, DC24V 2.8 PLC: Siemens CPU224 XP DC/DC/DC, with 14 way switch value input, 10 way transistor type output, 2 way analog value input and 1 way analog value output.
  2.  Experiment box accessories
    1.  K2 jumper line:30pcs
    2.  PLC programming cable
    3.  Experiment mauanl:1pce
    4.  Power supply:1pce
  3.  Experiment list
  4.  To understand PLC hardware and software
  5.  To understand PLC hardware
  6.  PLC wiring training
  7.  PLC inner resource learning
  8. The use of PLC programming software
  9. PLC application software uploading, downloading and on-line monitoring.
  10. PLC Digital input output test experiment
  11. PLC Analogue input& output test experiment
  12.  PLC basic instruction practice training
  13. Boolean instruction training
  14. Timer instruction training
  15. Counter instruction training
  16. Move instruction training
  17. Data shift instruction training
  18. Arithmetic operation instruction training
  19. Logic instruction training
  20. Sequence control relay instruction training
  21. 3 PLC project training
  22. Timer instruction application experiment
  23. Cycle lights control experiment
