PLC TRAINER 24VDC Fan x 1 unit

Order Code: 22235473.1

Category: General Lab Equipment II

The system adopts modern information technology means of computer simulation, and solves the problem of disconnection between theory, experiment, practice and practical application of professional training in the past through three training levels...



SPECIFICATION

  • The system adopts modern information technology means of computer simulation, and solves the problem of disconnection between theory, experiment, practice and practical application of professional training in the past through three training levels of operation, simulation and simulation.
  • The modular structure is adopted, that is, the PLC host, switch input and various simulation experimental units are all hanging box type, which can be combined according to the experimental items and network requirements. If you need to add experiments later, you only need to add components. Never be eliminated.
  • The test screen adopts aluminum alloy structure (surface electrophoresis treatment), and the aluminum alloy slideway is used to hang the test hanging box.
  • Equipped with a rich U disk, including PLC programming simulation, PLC configuration, training instructions, and PLC experimental source programs.
  • The system operation is safe (multiple personal and equipment safety protection), standardized, flexible in use, and full of modernity.
  • The system adopts special mold profiles, which are treated by anodizing and spraying. The structure is scientific and the appearance is beautiful. The surface is sprayed with imported Dutch pink sapphire blue. There are adjusters at the bottom of the table legs, and the height is adjustable to ensure smoothness.
  • The system table uses a 25mm fireproof board material, which is environmentally friendly, wear-resistant, corrosion-resistant, high-temperature resistant, and highly insulated. It adopts a 6mm rounded structure, which effectively prevents the edge and cracks of the table.

Technical

  • Input power: three-phase five-wire AC380V±10% 50HZ
  • Working environment: Temperature -10??+40 Relative humidity ? <85% (25?) Altitude<4000m
  • Power control: automatic air switch on and off power supply, with overvoltage protection, undervoltage protection, overcurrent protection, leakage protection system.
  • Output power: Three-phase AC 380V±10% 50HZ; single-phase AC 220V±10% 50HZ, fuse protection DC regulated power supply: 24V/5A, 3 and a half digits display DC voltage, with current-limiting short-circuit soft protection and self-recovery functions.

Device Configuration

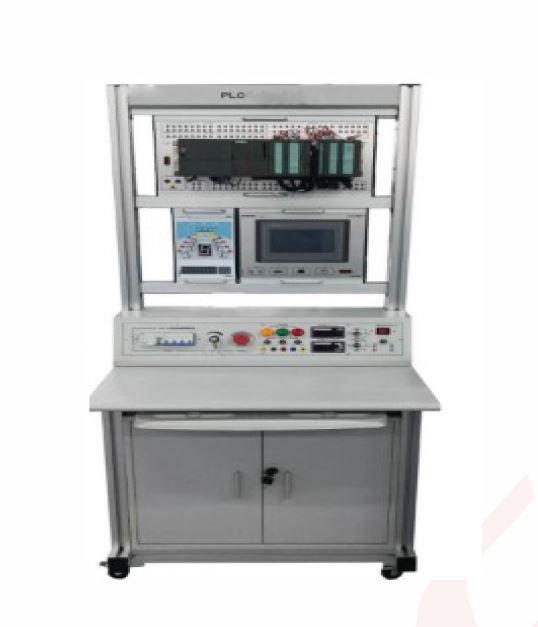

  • Laboratory bench: Basic platform, aluminum alloy structure, fireproof panel1 test bench
  • CPU unit: Enter the number of points 14 output points 10 Output Type Transistor Working power DC24V Product abbreviation CPU1215C Manufacturer Model CPU 1215C DC/DC/DC Pulse output channel 4 2 analog inputs 2 analog outputs Two Ethernet ports Support PN communication
  • Touch screen man-machine interface: Product abbreviation Screen size 7 inches Panel size (mm) 214*158 Hole size (mm) 197*141*39 Display color 65,000 colors Ethernet interface with RS485 serial port without RS232 serial port , 65,000 colors Display, integrated Profinet interface, configuration with WinCC Basic V13/Step 7 V13 or higher
  • SIMATIC IOT2050: SIMATIC IOT2050; 2x GB Ethernet RJ45; Display port; 2x USB2.0; 16 GB eMMc; SD card slot; 24V DC industrial power supply
  • Industrial Ethernet Switch :Input voltage 24VDC Type Installation method Rail installation Number of ports 5 Switching capacity Description Product name Unmanaged industrial switch Port type 5 10/100M adaptive RJ45 ports
  • Wireless Router : 1x 10/100/1000 Mbps WAN/LAN terminal
  • SIMATIC STEP 7 Basic V17; floating license :SIMATIC STEP 7 Basic V17; floating license; engineering software on the TIA Portal; software and documentation on DVD; license key on USB stick; class A; 9 languages: German, English, Chinese, French , Spanish, Italian, Russian, Japanese, Korean for download; runs on Windows 10, Windows Server 2016/2019; for configuring SIMATIC S7-1200 SIMATIC Basic Panel OrderContents: Set (4x DVD + 1x USB)
  • Test lead: Including head to head, K2 and K4 series National standard power cord, etc.
  • U disk : PC and software composition: PLC programming software Configuration Software

Equipment configuration

  • Programming software TIA configuration training
  • Programming software primary instruction training
  • Advanced instruction training of programming software
  • Touch screen HMI picture painting training
  • Touch screen HMI variable connection training
  • Practical training for using SIMATIC IOT2050
  • Use of Ethernet switche
