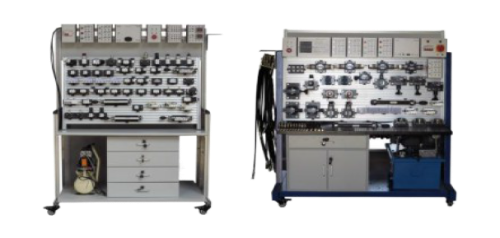

Plc Controlled Hydraulic & Pneumatic System Trainer

Order Code: 21225210.5

Category: General Lab Equipment I

Technical Specifications: a rodless cylinder (25 mm and stroke of 300 mm) a magnetic linear position sensor an electrically driven 5/3-way proportional pneumatic valve a filter unit with 3-2-way loop valve , dehumidifier with automatic dr...



SPECIFICATION

Technical Specifications:

  • a rodless cylinder (25 mm and stroke of 300 mm)
  • a magnetic linear position sensor
  • an electrically driven 5/3-way proportional pneumatic valve
  • a filter unit with 3-2-way loop valve , dehumidifier with automatic drain, pressure reducer (0 to 8 bars) and a
  • pressure gauge
  • a flat supporting base and a sloping base of painted steel for cylinder-sensor set and proportional valve
  • a spir al hose of plastic with airtight quick connect fittings, for air supply
  • cables with plugs of 2 mm
  • 1 analog input 0-10 V
  • 1 analog output 0-10 V
  • Power supply: 24 Vdc - 2A - 100 VA
  • an electro-pneumatic flow control valve with proportional positioner
  • an electronic flow-meter a filter unit with 3-2-way loop valve , dehumidifier with automatic drain, 2 pressure reducers (0 to 8 bars) and 2 pressure gauges
  • a flat supporting base and a sloping base of painted steel for the valve unit for the proportional flow control and the flow-meter
  • a spir al hose of plastic with airtight quick connect fittings, for air supply
  • cables with plugs of 2 mm
  • a bidirectional pneumatic motor (6000 RPM max.)
  • a tachogenerator (0-10 V)
  • an electrically driven 5/3-way proportional pneumatic valve
  • a filter unit with 3-2-way loop valve , dehumidifier with automatic drain, pressure reducer (0 to 8 bars) and a
  • pressure gauge
  • a flat supporting base and a sloping base of painted steel for cylinder-sensor set and proportional valve
  • a spir al hose of plastic with airtight quick connect fittings, for air supply cables with plugs of 2 mm
