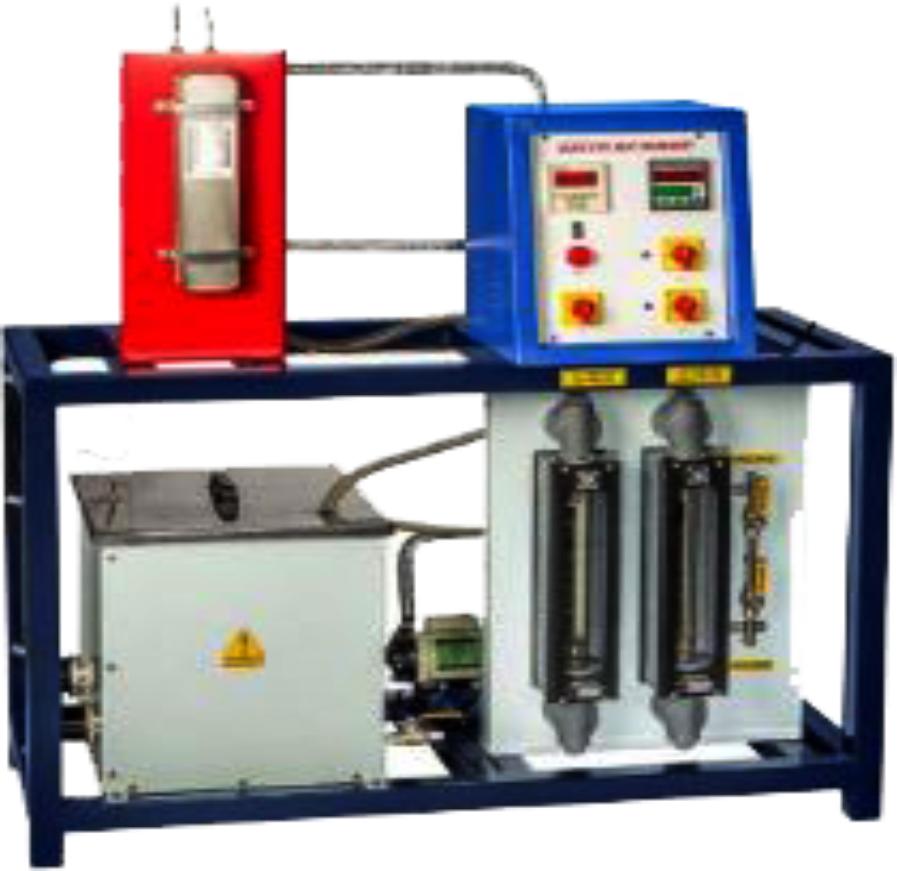

Plate Type Heat Exchanger

Order Code: 14022

Category: Heat Transfer Lab

Introduction: Plate type heat exchanger consists off ramien which independent metal plates are clamped between a head and follower. The plates are sealed at their outer edges and around the ports by gaskets, which are so arranged that the liquid a...



SPECIFICATION

Introduction:

Plate type heat exchanger consists off ramien which independent metal plates are clamped between a head and follower. The plates are sealed at their outer edges and around the ports by gaskets, which are so arranged that the liquid and the heating /cooling media are directed alternately into passages formed between the plates.The hot fluid enters at the top on the right side of the fixed end cover and flows downwards through alternate channels between the plates.

Specifications:

System:Water to Water

Plates:Material Stainless Steel

Frame:Rigid MS Structure

Water Flow Measurement:By Rotameter(2Nos.)one each for cold & hot fluid.

Hot Water Tank:Made of Stainless steel, Double Wall, Insulated with ceramic wool.

Hot Water Circulation:Magnetic Pump.

Heaters:Nichrome wire heater.

Control panel comprising of:Digital Temp.

Controller:0- 199.9°C,

Digital Temp. Indicator:0-199.9°C,with multi-channels switch

Temperature Sensors RTDPT-100 type.-4Nos.
