PLATE HEAT EXCHANGER (to be used with: POWER SUPPLY FOR HEAT EXCHANGERS).

Features

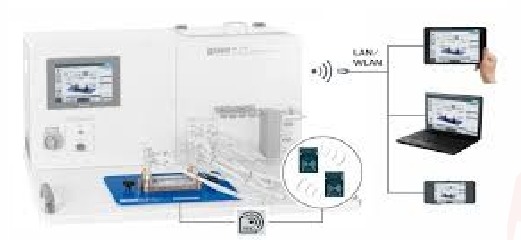

• parallel flow and counterflow operation possible,- intuitive experiment execution via touch screen ,- integrated router for operation and control via an end device and for screen mirroring on up to 10 end devices: PC, tablet, smartphone, - automatic identification of accessories via RFID technology.

• Learning objectives/ experiments- in conjunction with supply unit,--function and behaviour during operation of a plate heat exchanger,-- plotting temperature curves:in parallel flow operation in counterflow operation-- calculation of mean heat transfer coefficient,,-- comparison with other heat exchanger types, - PLC software specifically adapted to the accessories used,-- learning module with theoretical fundamentals,-- device description,-- guided experiment preparation,-- execution of the experiment,-- graphical representation of the experimental section with measured values for temperature,-- data transfer via WLAN/LAN for versatile external use of measured values and screenshots e.g. evaluation in Excel.

Specification;

• plate heat exchanger for connection to base unit

• parallel flow and counterflow operation possible

• six soldered plates

• recording of temperature using base unit

• automatic identification of accessories via RFID technology and use of the corresponding PLC software

• experiment execution and display of the measured values via touch screen (HMI)

• screen-mirroring: access to ongoing experiments and their results from up to 10 end devices simultaneously via the local network,[8] hot and cold water supply from base unit. Technical data-6 plates, stainless steel, Heat transfer surface: 480cm2
