Pick & Place Robotic Application Module (PLC Based) using stepper motors & its controller cards

Order Code: 52318

Category: Process Control Trainers

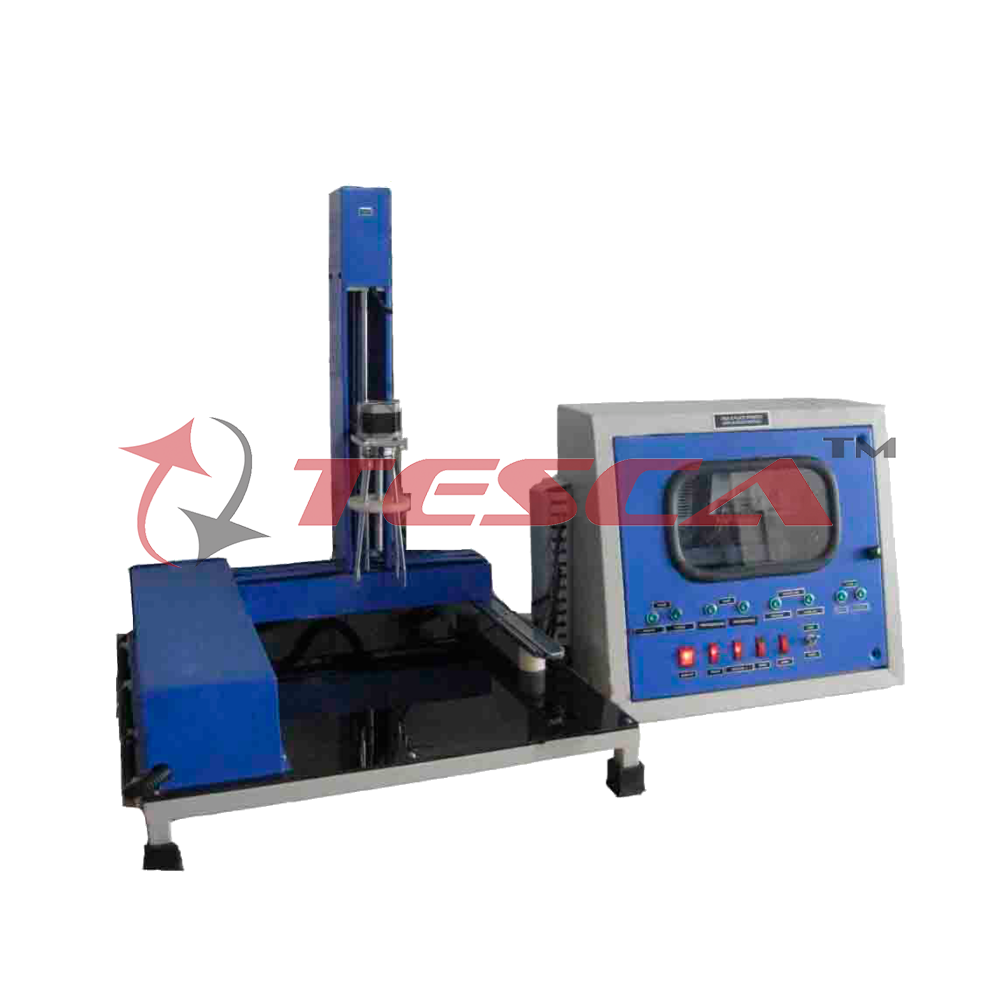

The Pick & place robotic application trainer (52318) gives provision to interface PLC with X-Y-Z Three axis displacement and a robotic arm. Features Controlled by PLC Displacement in 3 axes : X-Y-Z axis Capable to pick and place an o...



SPECIFICATION

The Pick & place robotic application trainer (52318) gives provision to interface PLC with X-Y-Z Three axis displacement and a robotic arm.

Features

  1. Controlled by PLC
  2. Displacement in 3 axes : X-Y-Z axis
  3. Capable to pick and place an object from one position to another.
  4. Variable Jaw area to Pick objects of different shapes.
  5. Object Lift movement height Selectable


Experiments

  1. PLC Micrologix 1400 with PWM output.


System Dimensions

  1. Control Panel: 1.5 Ft (L) × 1 Ft (W) × 1.5 Ft (H)
  2. Pick & Place Platform: 1.5 Ft (L) × 1.5 Ft (W) × 2 Ft (H)


Services Required

  1. Electric Supply of 1φ 230 VAC motor.
