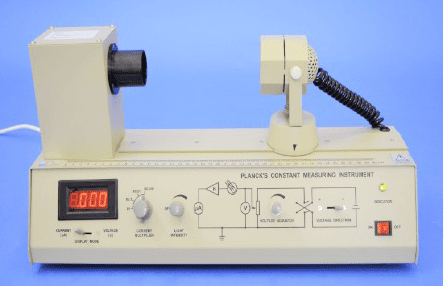

Photocell for h-determination, with housing
Order Code: 24258391.25
Category: General Lab Equipment V
Photoelectric Effect Experimental Setup – Technical Specifications Photosensitive Device: Vacuum Phototube Light Source: Halogen Tungsten Lamp, 12V / 35W Color Filters: ...
SPECIFICATION
Photoelectric Effect Experimental Setup – Technical Specifications
-
Photosensitive Device:
-
Vacuum Phototube
-
-
Light Source:
-
Halogen Tungsten Lamp, 12V / 35W
-
-
Color Filters:
-
Wavelengths: 635 nm, 570 nm, 540 nm, 500 nm, 460 nm
-
-
Accelerating Voltage – Regulated Power Supply:
-
Output Voltage: ±15V, continuously variable using a multi-turn potentiometer
-
Display: 3½-digit 7-segment LED
-
Accuracy: ±0.2%
-
-
Current Detection Unit – Digital Nanoammeter:
-
Type: High-stability, low-current measuring instrument
-
Measurement Ranges: 1000 µA, 100 µA, 10 µA, 1 µA (with 100% over-ranging capability)
-
Resolution: 1 nA at 1 µA range
-
Display: 3½-digit 7-segment LED
-
Accuracy: ±0.2%
-
-
Power Requirement:
-
220V AC ±10%, 50 Hz
-
-
Optical Bench:
-
Adjustable light source positioning along the bench
-
Scale Length: 400 mm
-
Draw tube for installing color filters
-
Fixed focusing lens at the rear end
-
