Phase and Frequency determination of electrical signals using a CRO (Lissajous Figures)
Order Code: 36307
Category: Analog Electronics Trainers

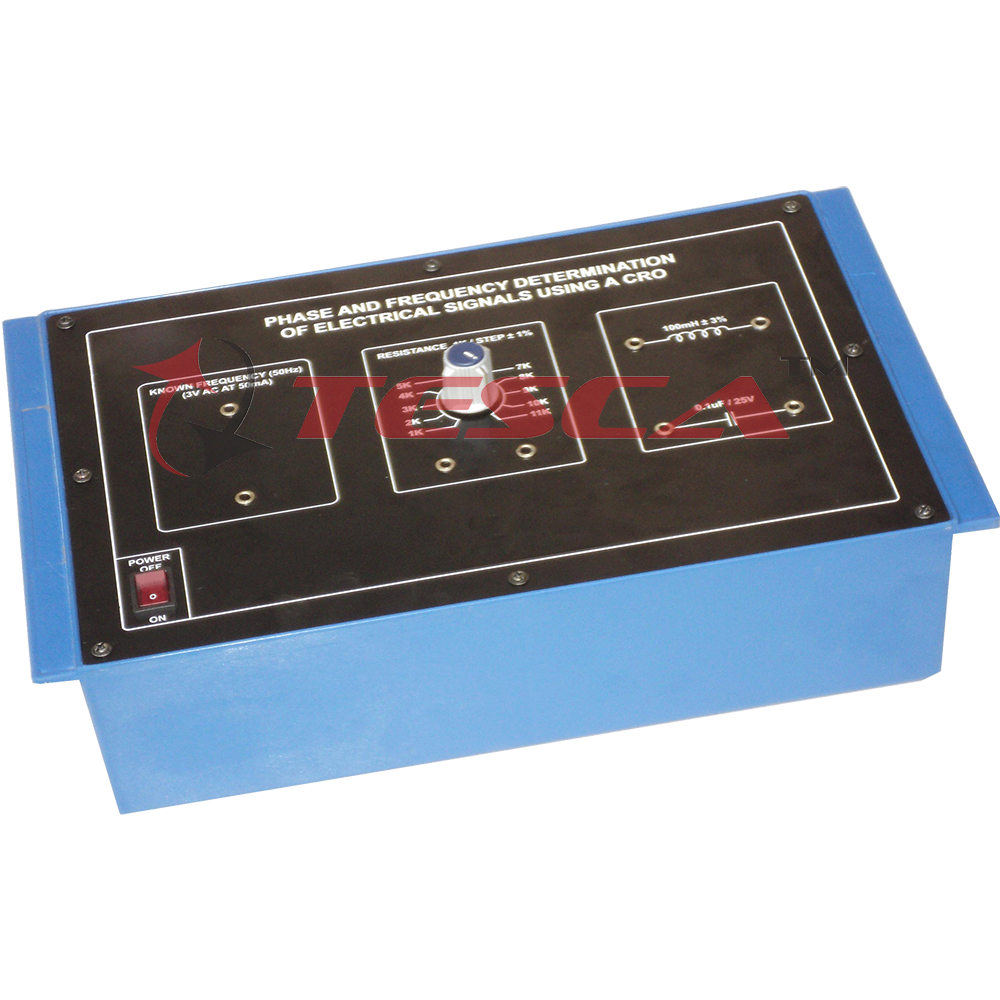

36307 Experimental Set-Up has been designed specifically for Phase and frequency determination of electrical signals using a CRO. The set up is complete in all respect and requires no other apparatus. Practical experience on this set up carries ...
SPECIFICATION
36307 Experimental Set-Up has been designed specifically for Phase and frequency determination of electrical signals using a CRO.
The set up is complete in all respect and requires no other apparatus. Practical experience on this set up carries great educative value for Science and Engineering Students.
Object :
To study analog CRO, Measurement of time period, amplitude, frequency and phase angle using Lissajous Figures.
- Study of CRO.
- Measurement of time period CRO.
- Measurement of amplitude CRO.
- Measurement of frequency using Lissajous Figures.
- Measurement of phase angle using Lissajous Figures.
Features
The board consists of the following built-in parts:
- Known frequency 50Hz (3V AC at 50mA).
- One Inductor.
- One Capacitor.
- Resistance selector switch to select different resistance.
- Mains ON/OFF switch, Fuse and Jewel light.
- Adequate no. of patch cords stackable 4mm spring loaded plug length 50cm.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
- Weight : 2.00 Kg. (Approx.)
- Dimension : W 340 x H 125 x D 210 (mm)
Other Apparatus Required :
- Audio Sine Wave Generator
- Dual trace CRO 20MHz
