PFI (Power Factor Improvement) Trainer.

Order Code: 24257673.1

Category: General Lab Equipment V

Scope of Supply a. 01 x PFI Trainer with standard accessories b. Cables c. Documentation and Certification d. Installation, Supervision & STW e. Testing, Trial, and Acceptance f. Local Training System Composition The PFI Trainer sha...



SPECIFICATION

Scope of Supply

a. 01 x PFI Trainer with standard accessories
b. Cables
c. Documentation and Certification
d. Installation, Supervision & STW
e. Testing, Trial, and Acceptance
f. Local Training

System Composition

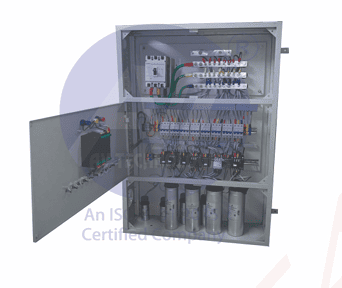

The PFI Trainer shall include (but is not limited to) the following components:

a. Auxiliary Devices

  1. 01 x Automatic Power Factor Correction Relay

  2. 04 x TP Magnetic Contactors (adequate rating)

  3. 04 x MCBs (adequate rating)

  4. 04 x Indicating Lamps for automatic indication

  5. 01 x Selector Switch for Automatic & Manual operation

  6. 01 set x Selector Switch for Manual Load Connection

  7. 01 set x Selector Switch for Manual Capacitor Bank Connection

  8. 01 set x Control Fuses

  9. 04 x Bus-Bars (isolated from the body with bus insulators)

  10. 01 x MCCB for Power Input Connection

  11. 01 x Analog Power Factor Meter

b. Capacitors

  1. 01 x Dry-Type Power Capacitor (415V-440V, 7.5 KVAR)

  2. 01 x Dry-Type Power Capacitor (415V-440V, 5 KVAR)

  3. 01 x Dry-Type Power Capacitor (415V-440V, 2.5 KVAR)

  4. 01 x Dry-Type Power Capacitor (415V-440V, 1 KVAR)

c. Load Components

  1. 01 set x 3-Phase Inductive Load with MC & MCB (0.25 KVAR)

  2. 01 set x 3-Phase Inductive Load with MC & MCB (0.5 KVAR)

  3. 01 set x 3-Phase Inductive Load with MC & MCB (0.75 KVAR)

  4. 01 set x 3-Phase Inductive Load with MC & MCB (1 KVAR)

System Features

The system should include the following features:
a. Manual Power Factor Improvement
b. Automatic Power Factor Improvement
c. Short Circuit Protection

Environmental Conditions

a. Ambient Operating Temperature: 5°C to +55°C
b. Storage Temperature: To be specified
c. Relative Humidity: Up to 95% (non-condensing)
