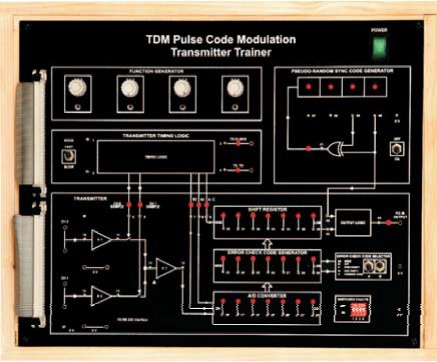

PCM MULTIPLEXER-DEMULTIPLEXER TRAINER PCM MULTIPLEXER-TRANSMITTER
Order Code: 24257358.1.55
Category: General Lab Equipment V
The board includes 4 voice channels with input amplifier and A/D converters whose outputs are read in sequence and have to be sent to a parallel- serial converter. Complete with 4 sinusoidal tone generators (340- 680- 1360-2720 Hz...
SPECIFICATION
-
The board includes 4 voice channels with input amplifier and A/D converters whose outputs are read in sequence and have to be sent to a parallel- serial converter.
-
Complete with 4 sinusoidal tone generators (340- 680- 1360-2720 Hz) with adjustable levels, 2 TTL signals, reference voltages and transmission line simulator with attenuator and noise generator.
-
Sampling speed: rated 8 kHz.
-
Another very low speed (64 Hz) must be available for special study purposes.
-
Transmission speed: 307 kbit/s
-
Format of the transmitted data: TTL levels PCM RECEIVER-DEMULTIPLEXER
-
It includes a line receiver with extractor of the synchronism signals, the serial-parallel converter, the D/A converter and the time division analogue demultiplexer.
-
Complete with output amplifiers with low-pass filter.
Performs the following exercises:
-
Numerical coding of analogue signals
-
Time division multiplexing
-
Construction of a PCM frame
-
Coding of synchronism and alignment signals
-
Reception of numerical signals
-
Extraction and recognition of the bit and frame synchronisms
-
Numerical/analogue decoding"
-
Time demultiplexing
-
Performance of TDM-PCM systems: error and quantization noise, band limitation, influence of the sampling speed on quality
