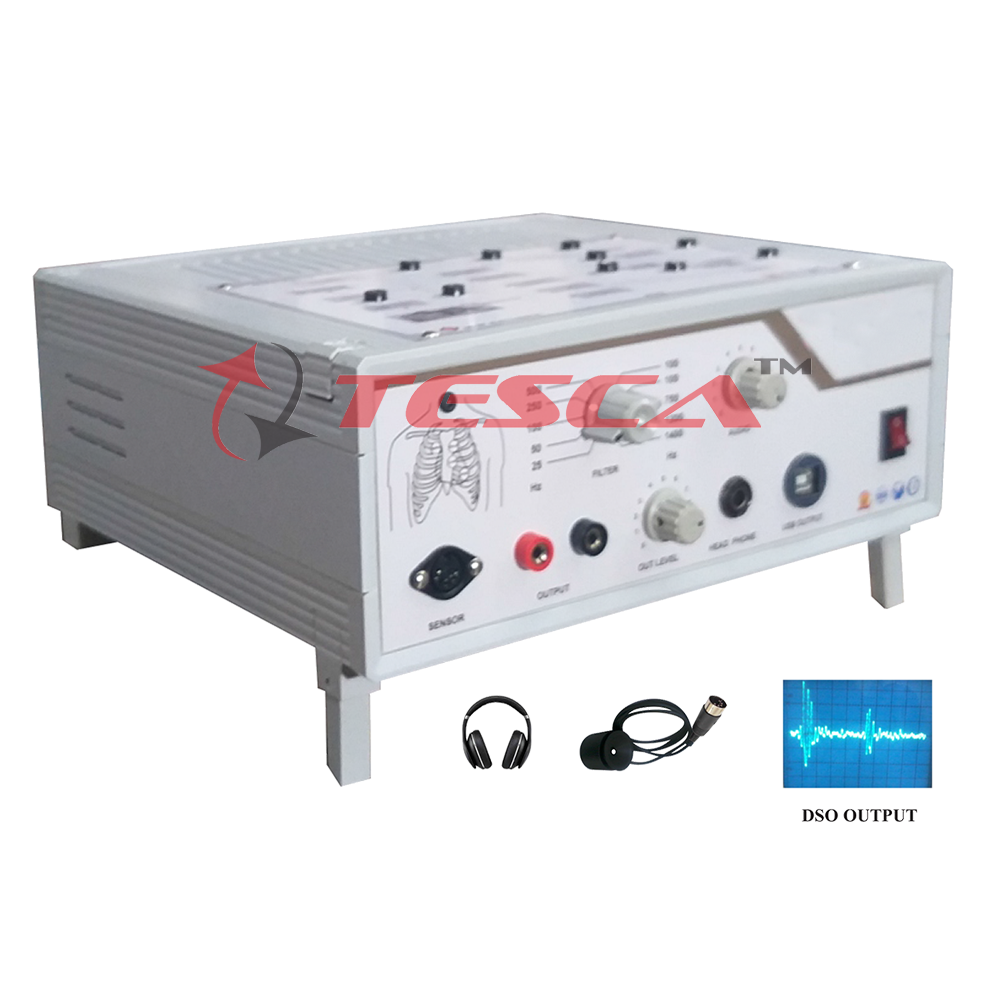

PCG Amplifier with 5 Filter
Order Code: BM2141
Category: Biomedical Trainers
PCG Amplifier with 5 Filters Phonocardiogram Amplifier with 5 Filter Trainer Kit Real time amplified PCG output up to 15Vpp±, PCG Transducer. Adjustable Gain & Adjustable Audio with Head Phone. Rotary switch to select 5 positions Filter....
SPECIFICATION
PCG Amplifier with 5 Filters
Phonocardiogram Amplifier with 5 Filter Trainer Kit
Real time amplified PCG output up to 15Vpp±, PCG Transducer. Adjustable Gain & Adjustable Audio with Head Phone. Rotary switch to select 5 positions Filter.
Filter Range 25Hz to 1400Hz±, Heart beat indication. Output PCG through 4mm socket. Test points On the Top of Instrument Output through 2mm socket.
Power Supply 230V, 50Hz. Dimensions 250 X 75 X 250 mm ±
Study on PCG Amplifier
Study of phonocardiogram (or PCG) is a plot of high-fidelity recording of the sounds and murmurs made by the heart with the help of the machine PCG. Study of Heart Sound & Murmurs. Study of the condition of the heart. Study of Heart sound for analysis provides good information of these diseases- cardiovascular diseases. Study of rhythmic beating of heart. Study of a sound referred to as “Lub-Dub” . Study of the atrio-ventricular and the aortic-pulmonic valves
Other Models
SN. Order Code Name of Item
01. BM2141-USB PCG Amp.+ 5 Filters & USB BIOWAVE
Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting, Experiments list & etc.
