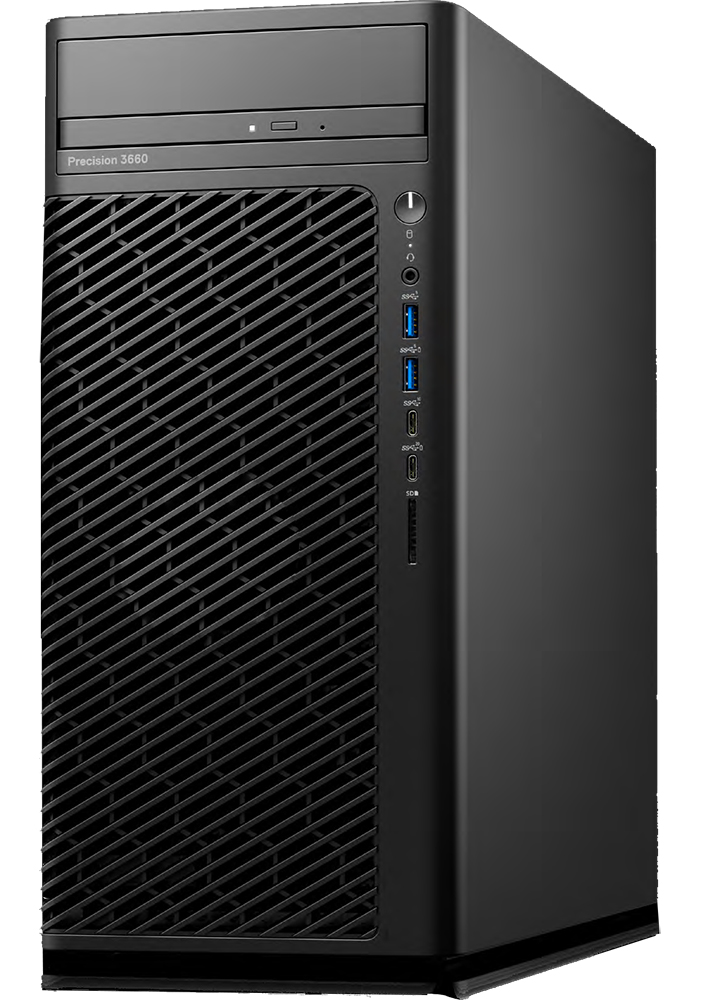

PC Workstations

Order Code: Prec-3660-S2817QX1

Category: Miscellaneous

Minimum configuration: Processor Intel Core i7-13700 2.10G 30MB 16 cores Chipset Intel® W680 chipset Monitor Size- 28 Inch, 1080P(Minimum) Form Factor with Tool free design Convertible Mini Tower/Tower with tool-less entry and mai...



SPECIFICATION

Minimum configuration:

  • Processor Intel Core i7-13700 2.10G 30MB 16 cores Chipset Intel® W680 chipset
  • Monitor Size- 28 Inch, 1080P(Minimum)
  • Form Factor with Tool free design Convertible Mini Tower/Tower with tool-less entry and maintenance. System should feature Active Acoustic Reduction, with low noise level.
  • CPU stand with with wheel lock



RAM

  • 32GB DDR5 nECC Memory & speed should be 4400MHz or better DIMM slots, supporting up to 128 GB ECC / nECC DDR5 4800 MT/s



BIOS

  • BIOS of the Workstation to have tool for Enhaced security features like self healing, regular checks.

Drive Controllers

  • Integrated SATA controller with minimum 4 x 6Gbps ports & SATA Controller should support RAID 0,1 .



HDD

  • 1 TB PCIe NVMe M.2 SSD & 1TB SATA 7200 RPM. System should support additional 2 SATA & 2 x M.2 SSD drives .
  • Optical Drive Slim DVD+/-RW Double Layer SuperMulti (SATA) drive.

Graphics Card

  • NVIDIA RTX A4000 20 GB . System should support up to NVidia RTX 5000 32GB CARD in future ready. Certified drivers for CAD applications to be supplied

Keyboard and Mouse

  • Minimum 104 keys USB Keyboard and USB Optical Scroll mouse -Same make as that of the workstation Audio High Definition Integrated Audio with Internal speaker.

Communications

  • Integrated Intel® I219LM GbE Controller with Intel® vPro™ with Intel® AMT 16.0 support

"Bays/Slot

  • 2 x Internal 3.5"" bays
  • 1 x External 5.25"" bay
  • 1 x Internal 2.5"" bay (for SSD only)
  • 1 x Dedicated 9.5mm slim optical disk drive bay
  • 1 x PCI Express Gen5 slot x16 mechanical/ x16 electrical (full height, full length)
  • 1 x PCI Express Gen3 slot x4 mechanical/ x1 electrical (full height, full length, open-ended)
  • 1 x PCI Express Gen3 slot x16 mechanical/ x4 electrical (full height, full length)
  • 1 x PCI Express Gen3 slot x4 mechanical/ x4 electrical (full height, full length, open-ended)
  • 3 x M.2 2280 Storage (PCIe Gen4 x4)
  • 1 x M.2 2230 WLAN (PCIe Gen3 x1+ Intel CNVi

Security

  • Optional for BIOS controlled electro-mechanical internal chassis lock for the system.



Ports

  • Front I/O - 2 x Type-A SuperSpeed USB 10Gbps signalling rate port (1 charge port supports up to 5V/2.1A), 2 x Type-A SuperSpeed USB 10Gbps signalling rate port, 1 x Type-C SuperSpeed® USB 20Gbps signalling rate port (charge supports up to 5V/3A,), Optional 1 x SD card reader , 1 universal audio jack
  • Internal I/O – 1 x Hi-Speed USB 480Mbps signalling rate header for SD card reader , 1 x serial port available with header , 1 x serial and PS/2 available with header Rear I/O - 2 x DisplayPort 1.4 [3], 1 x Audio Line out, 1 x Audio Line in, 1 x RJ-45, 3 x Hi-Speed USB 480Mbps signalling rate port, 2 x Type-A SuperSpeed USB 10Gbps signalling rate port, 1 x Type-A
  • SuperSpeed USB 5Gbps signalling rate port, 1 x serial (optional), 2 x SuperSpeed USB 5Gbps signalling rate port



Operating System

  • Genuine Win 11 Pro 64 . All drivers required for proper integration of components should be supplied by the vendor. All latest drivers should be available to download from vendor's website. System should support for Red Hat® Enterprise Linux Desktop 8.3 or Higher Form Factor with Tool free design
  • Convertible Mini Tower with tool-less entry and maintenance. System should feature Active Acoustic Reduction, with low noise level.
  • System should be rack-mountable



  1. Min 700W wide-ranging, active Power Factor Correction, 92% Efficient EPEAT GOLD INDIA or Higher Additional Software
  2. The hardware vendor should supply an automatic system performance tuning and monitoring software on Windows.
  3. The tuning software should have modules for resource monitoring over a long period of time, and should be capable of showing GPU utilisation (GPU, Graphics memory and Codec activity) for both Graphics and GPU Compute cards.
  4. A complete Offline Diagnostics and Asset Discovery software suite should be supplied along with the system. Warranty 3 years onsite parts and labour warranty for system
