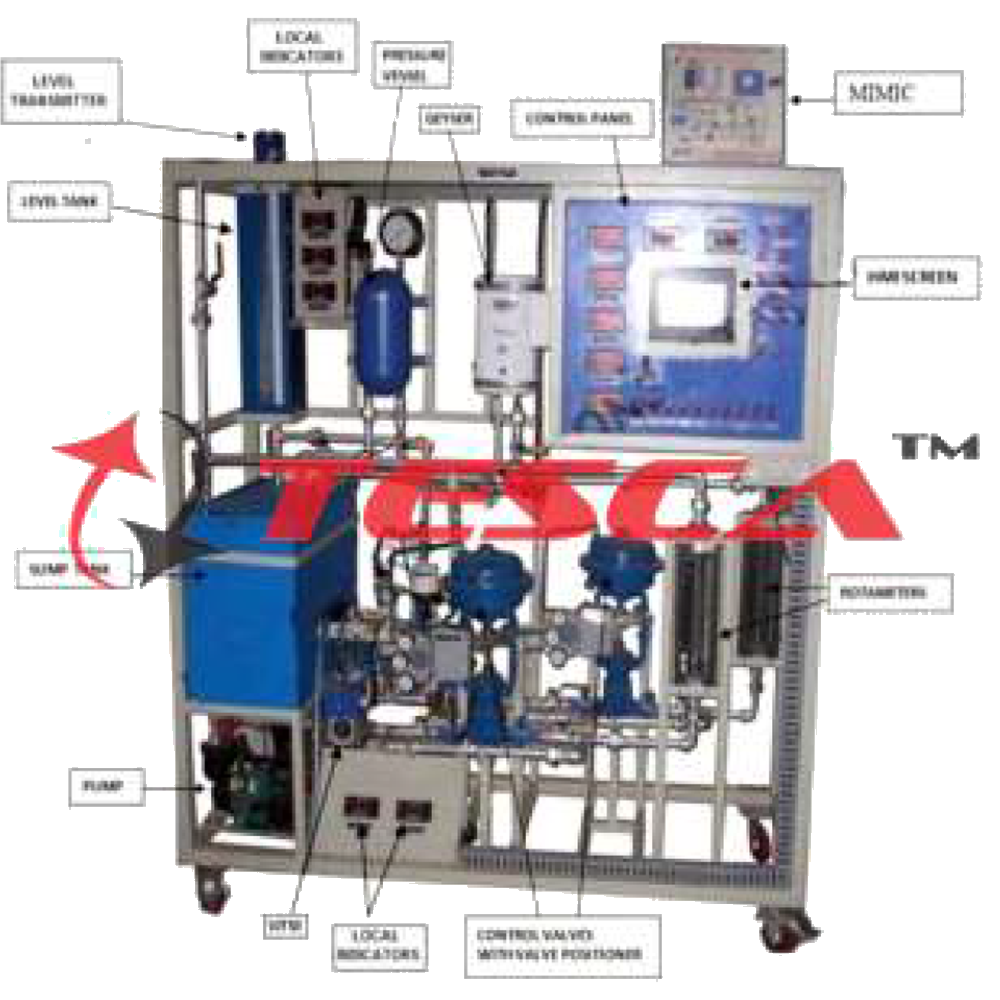

PC-PLC HMI Based Multi Process Control Trainer

Order Code: 52238

Category: Process Control Trainers

The PC-PLC HMI Based Multi-Process Control Trainer outlines the basics of control of Flow, Level, Temperature, Pressure etc. and other aspects related to PLC Control. KEY WORDS: Feedback Control. Split Range Control. Feedback P...



SPECIFICATION

The PC-PLC HMI Based Multi-Process Control Trainer outlines the basics of control of Flow, Level, Temperature, Pressure etc. and other aspects related to PLC Control.

KEY WORDS:

  1. Feedback Control.
  2. Split Range Control.
  3. Feedback Pressure Control.
  4. Cascade Control (Level Flow, Pressure Flow).
  5. Feedback Level Control.
  6. Feedback Flow Control.
  7. Feedback Temperature Control.


Range of experiments:

  1. Study of PLC & HMI.
  2. Study of PLC based control of Multi Process systems.
  3. Study of data logging system.
  4. Study of feedback, cascade, Ratio and on-off, split Range, control schemes.
  5. Calibration of Various Sensors, Transmitters like Pressure, Level, Flow, Temperature, Control Valve, Rotameter, E/P, etc.
  6. Feedback control: Flow, Level, Pressure, Temperature
  7. Cascade Control: Flow-Level, Flow-Pressure.



Features:

  1. Compact Ergonomic Design.
  2. User Friendly, Self Explanatory Systems.
  3. Leak proof Safety Measures, sturdy piping.
  4. Enhanced Electrical Safety Considerations.
  5. Training Manuals Mimic Charts for Operation Ease.
  6. System Dimension: 6 Ft. (L) X 2.5 Ft. (W) X 6 Ft. (H)
  7. Inbuilt Safety Measures to avoid improper usage.
  8. Computer Interface (Optional).
  9. System Frame with Caster Wheel Arrangement for ease in movement.
  10. M.S. powder coated cubical plant with standard Instrument Mountings.
  11. System Weight: Approx. 200 kg
