Packed Bed Reactor

Order Code: 14170

Category: Chemical Reaction Engineering

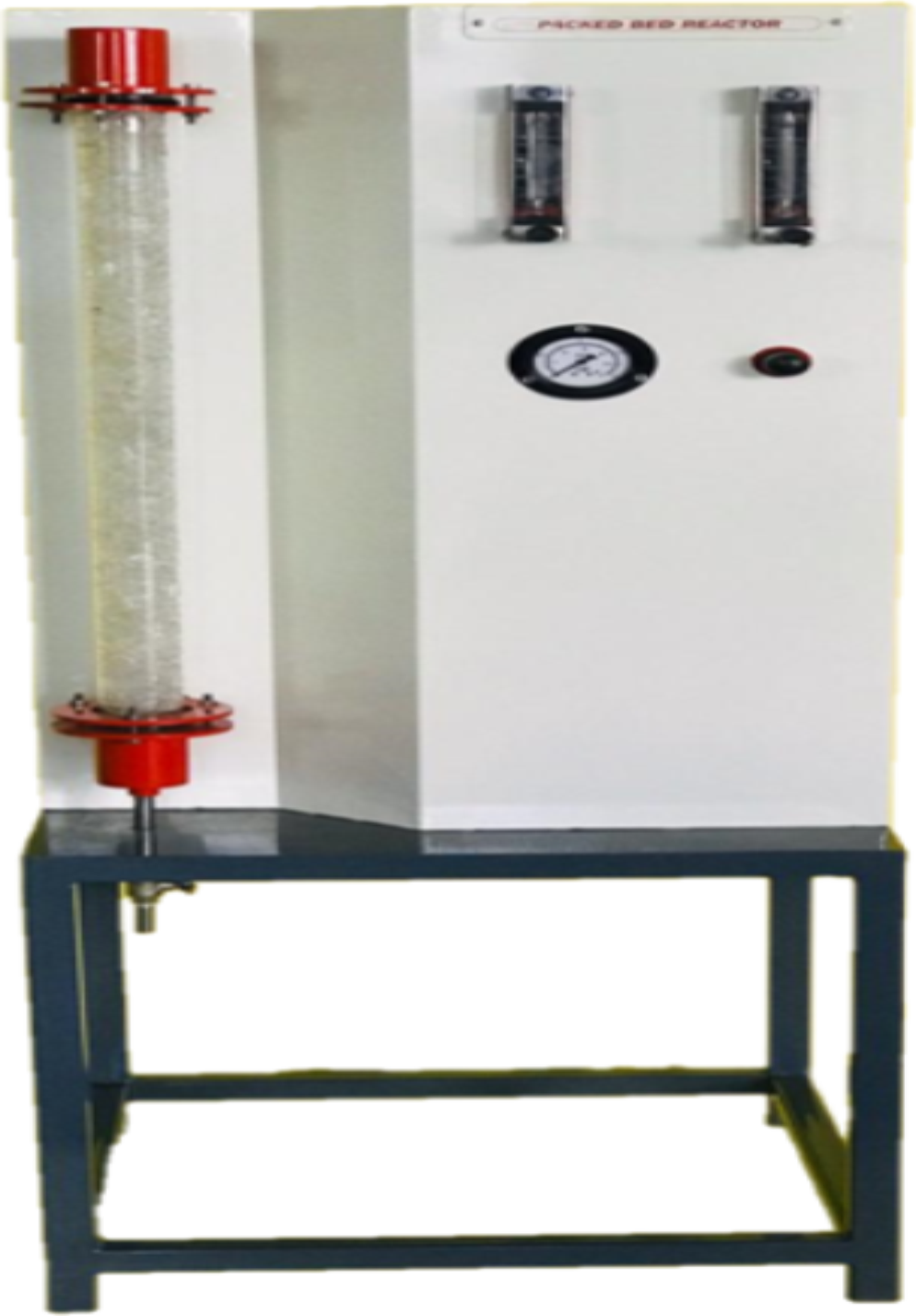

Introduction: The setup consists of a glass column packed with Ranching Rings and two feed tanks. Reactants are fed to the reactor through liquid distributor, fitted at the bottom of the column. Rota meters are provided to measure the individual flow...



SPECIFICATION

Introduction: The setup consists of a glass column packed with Ranching Rings and two feed tanks. Reactants are fed to the reactor through liquid distributor, fitted at the bottom of the column. Rota meters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter.

Specifications:

  1. Reactor:Material Stainless Steel, Capacity 3 Ltrs. (approx).
  2. Water Bath:Material Stainless Steel, Double wall, insulated with Ceramic Wool.
  3. Heater:Nichrome wire Heater Stirrer:Material Stainless Steel Impeller and shaft coupled with FHP motor
  4. Feed Tank (1Nos.): Material Stainless Steel, Capacity - 20 Ltrs.
  5. Feed Circulation: By compressed air.Flow Measurement: Rota meter.
  6. Piping:Material Stainless Steel and PVC.Pressure Regulator:0-2 Kg/cm2
  7. Pressure Gauge:Bourdon type 0-2 Kg/cm2
  8. Stop Watch:Electronic
  9. Temp.Sensor:RTD PT-100 type.
  10. The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure.
