Optical Power Source

Order Code: 24257688.5

Category: General Lab Equipment V

Technical Specifications for Optical Power Meter (OPM) Calibrated Wavelengths (FX48): 830 nm, 850 nm, 940 nm, 980 nm, 1300 nm, 1310 nm, 1330 nm, 1470 nm, 1490 nm, 1510 nm, 1530 nm, 1550 nm, 1570 nm, 1610 nm, 1625 nm, and 1650 nm De...



SPECIFICATION

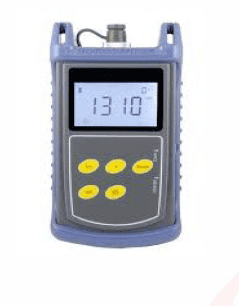

Technical Specifications for Optical Power Meter (OPM)

  • Calibrated Wavelengths (FX48):
    830 nm, 850 nm, 940 nm, 980 nm, 1300 nm, 1310 nm, 1330 nm, 1470 nm, 1490 nm, 1510 nm, 1530 nm, 1550 nm, 1570 nm, 1610 nm, 1625 nm, and 1650 nm

  • Detector Type:
    InGaAs

  • Level Measurement Range:
    -50 to +25 dBm

  • Accuracy:
    ±0.2 dB or 5%

  • Wave ID Detection (compatible with VeEX source):
    850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, and 1650 nm


General Information

  • Communication Port:
    Micro USB

  • Connector or Adaptor Types:
    FC/SC/ST/LC, Universal 2.5 mm

  • Compliance:
    CE marked in accordance with IEC 61326

  • Battery Operating Time:
    Approximately 80 hours (without backlight)
