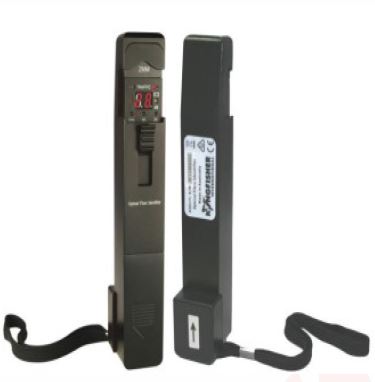

Optical Fiber Identifier

Order Code: 23247142.20

Category: General Lab Equipment IV

Fiber type: single-mode fiber Sheath/count: 0.25mm coating ribbon, ribbon fiber up to 12 fiber, or fiber cord: 1.1 mm, 1.5 mm, 1.7 mm, 2.0 mm & 3.0 mm Wavelength range: 900 nm to 1700 nm Traffic signal (CW), Light signal with modula...



SPECIFICATION

  • Fiber type: single-mode fiber
  • Sheath/count: 0.25mm coating ribbon, ribbon fiber up to 12 fiber, or fiber cord: 1.1 mm, 1.5 mm, 1.7 mm, 2.0 mm & 3.0 mm
  • Wavelength range: 900 nm to 1700 nm
  • Traffic signal (CW), Light signal with modulated tone at 270 Hz, 1 KHz or 2khz (square wave 50 ) Shock
  • resistance: 76 cm (30 inches) drop *3
  • Storage condition: -10 to +50°C, 0 to 95% RH/-20 to +60°C, 0 to 95% RH 1.2 to 1.5 V DC with two AA batteries/Approximately 8 hours by alkaline  batteries at room
  • temperature Size/weight: 50W x 212D x 115H mm/ 230 g including battery Wavelength
  • response: 1310 nm, 1490 nm, 1550 nm
  • Detectable light signals: Traffic signal (CW), Light signal with modulated tones at 270 Hz, 1 kHz, or 2 kHz (square wave 50 ± 10% duty cycle)
  • Detector sensitivity: ±10 to -60 DBm at modulated tone/ +10 to -40 DBm at CW light (traffic signal)
  • Accuracy: within ± 0.3 dB at room temperature
