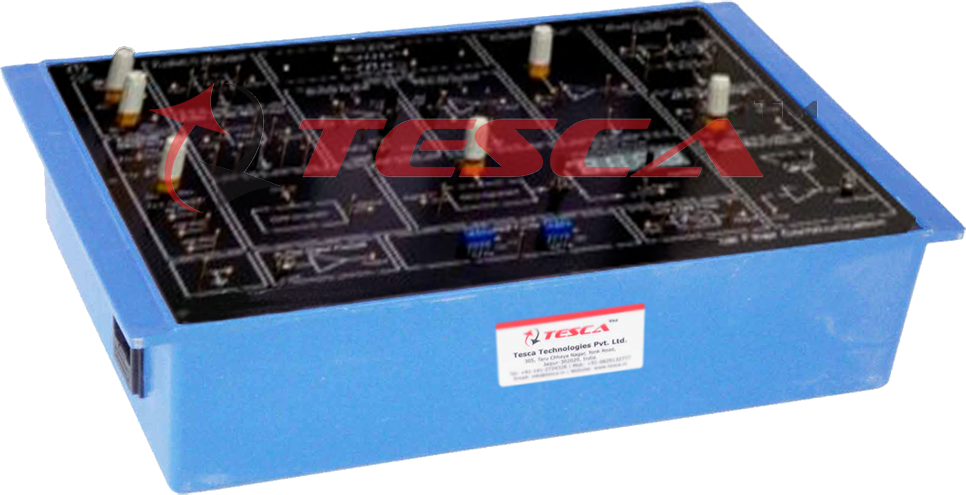

Optical Fiber Communication

Order Code: 28510B

Category: Fiber Optic Trainers

28510B Optical Fiber Communication TechBook demonstrate simplex method of transmitting information from one place to another by sending pulses of light through an Optical fiber. The TechBook demonstrates the properties of Simplex Analog and Digital T...



SPECIFICATION

28510B Optical Fiber Communication TechBook demonstrate simplex method of transmitting information from one place to another by sending pulses of light through an Optical fiber. The TechBook demonstrates the properties of Simplex Analog and Digital Transreceiver, characteristics of Fiber Optics cable, Modulation / Demodulation techniques, Bit Error Rate measurement and observation of Eye Pattern. A large number of experiments are included in the workbook and many more can be performed using 28510B.

Features

  1. Simplex Analog and Digital Transreceiver
  2. AM-FM-PWM modulation / demodulation
  3. 660 nm channel with Transmitter & Receiver
  4. On board Function Generator
  5. On board Clock & Data Generator
  6. On board Bit Error Counter
  7. Crystal controlled Clock
  8. Functional blocks indicated on-board mimic
  9. Input-output & test points provided on board
  10. On board voice link
  11. Built in DC Power Supply
  12. Numerical Aperture measurement jig and mandrel for bending loss measurement
  13. Switched faults on Transmitter & Receiver

Object

  1. Setting up Fiber Optic Analog & Digital Link
  2. AM system using Analog & Digital Input Signals
  3. Frequency Modulation System
  4. Pulse Width Modulation System
  5. Study of Propagation Loss in Optical Fiber
  6. Study of Bending Loss
  7. Measurement of Numerical Aperture
  8. Characteristics of Fiber Optic Communication Link
  9. Setting of Fiber Optic Voice Link using AM, FM & PWM
  10. Study of switched faults in AM, FM & PWM System
  11. Propagation loss using Optical Power Meter
  12. V-I Characteristics of LED ( E - O converter)
  13. Characteristics of Photo Detector
  14. Effect of EMI on Optical Communication
  15. Measurement of Bit Error Rate
  16. Study of Eye Pattern

Technical Specifications

  • Transmitter : 1 no., Fiber Optic LED having peak wavelength of emission 660 nm
  • Receiver : 1 no., Fiber Optic Photodetector
  • Modulation Techniques : 1. AM 2. FM 3. PWM
  • Drivers : 1 no. with Analog & Digital modes
  • Clock : Crystal controlled Clock 4.096 MHz
  • PLL Detector : 1 no.
  • AC Amplifier : 1 no.
  • Comparator : 1 no.
  • Filters : 1 no. 4th order Butterworth, 3.4 KHz cut-off frequency
  • Analog Band Width : 350 KHz
  • Digital Band Width : 2.5 MHz
  • Function Generator : 1 KHz Sine wave (Amplitude adjustable)

1 KHz Square wave (TTL)

  • Clock Generator : 64 KHz/128 KHz/256 KHz (TTL)'
  • Data Generator : 15 Bit
  • Noise Generator : Variable level
  • Voice Link : F. O. voice link using microphone & speaker (built in)
  • Bit Error Counter : 4 digits, 7 segment display
  • Switched Faults : 4 in Transmitter & 4 in Receiver
  • Fiber Optic Cable : Connector type Standard SMA
  • Cable Type : Step indexed multimode PMMA plastic cable
  • Core Refractive Index : 1.492
  • Clad Refractive Index : 1.406
  • Numerical Aperture : Better than 0.5
  • Acceptance Angle : Better than 60 deg.
  • Fiber Diameter : 1000 microns'
  • Outer Diameter : 2.2 mm
  • Fiber Length : 0.5 m & 1 m
  • Test Points : 34 nos
  • Inter connections : 2 mm sockets
  • Dimensions (mm) : W 326 × D 252 × H 52
  • Weight : 1 Kg approximately
  • 0 Operating conditions : 0-40 C, 80% RH
  • Power Supply : 110-220 V, ±10%, 50/60 Hz
  • Power Consumption : 3 VA approximately
  • Included Accessories : NA Measurement jig, Mandrel, Fiber cables, Microphone, Headphone, Set of Patch cords
  • Optional Accessories : Optical Power Meter, 5 meter fiber cable, 10 meter fiber cable.
