Optical absorption & polarised intensity measurement using photo resistor (C.R.)
Order Code: 55864
Category: Physics Trainers

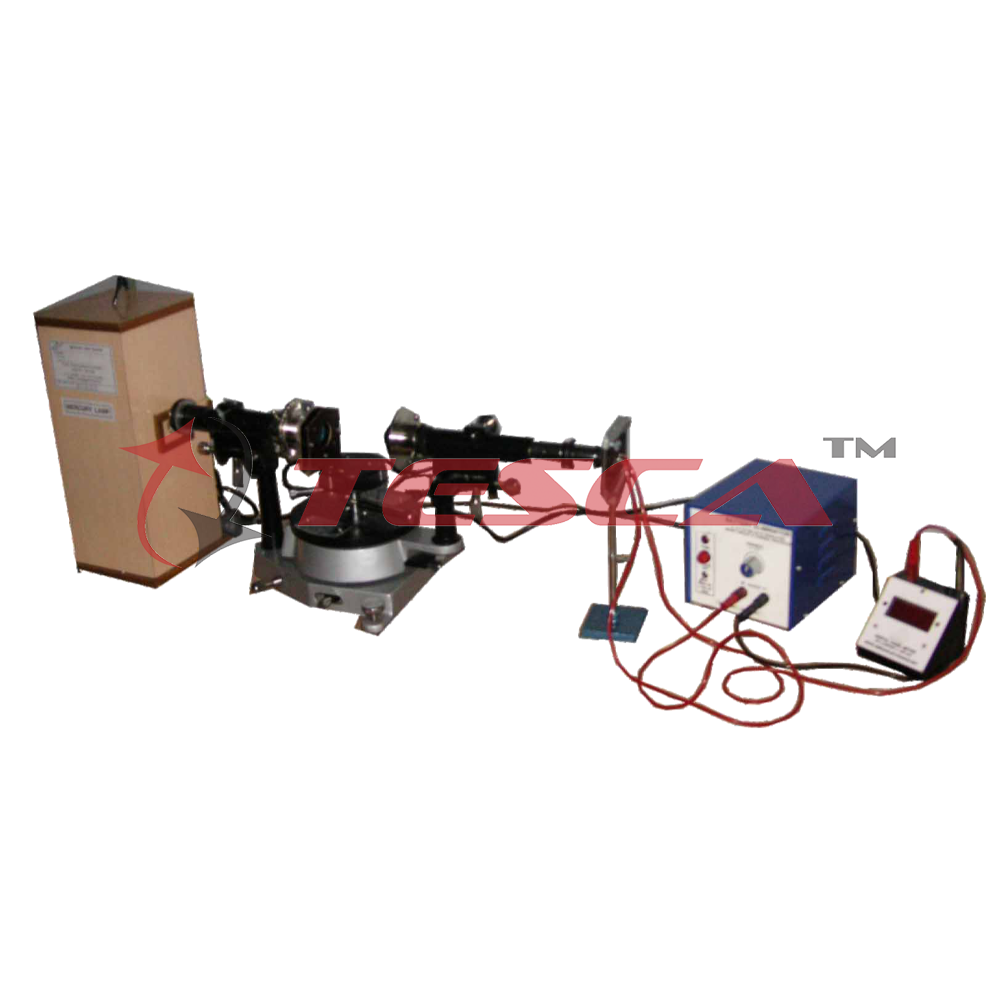

55864 Experimental Set-up has been designed specifically to measure optical absorption and polorised light intensity using photo resistor. The set-up consists of a Spectrometer, mercury light source, photo resistor, microammeter, optical filter, Batt...
SPECIFICATION
- To study the variation of light intensity from a Poloriser and Analyser combination.(Using photo resistor as a detector)
- To estimate the absorption coefficient and transmission coefficient of various optical filtters using a photo resistor as detector.
- SPECTROMETER STANDARD : 6" dia circle reading 30 seconds. The objectives used in telescope and collimator are achromatic and provided with rack and pinion focussing arrangement. Telescope arm and prism table are provided with fine and coarse adjustment. The prism table is provided with three leveling screws and is engraved with concentric rings & lines. The scales and verniers are of stainless steel and are machine divided. Clamping devices are also provided to lock telescope and collimator after adjustment, with prism clamping device and diffraction grating stand.
- Mercury light source : Complete with Mercury Vapour lamp 80W along with choke & wooden box with holes with slide covers one each on three sides.
- Polaroids : 2 no. as a polariser and analyzer.
- Photo resistor (LDR)
- Digital microameter having 0-200 uArange.
- Three different colour optical filters.
- Battery eliminator
- one 1K Resistance
- Adequate no. of connecting wires, 100cm long.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
