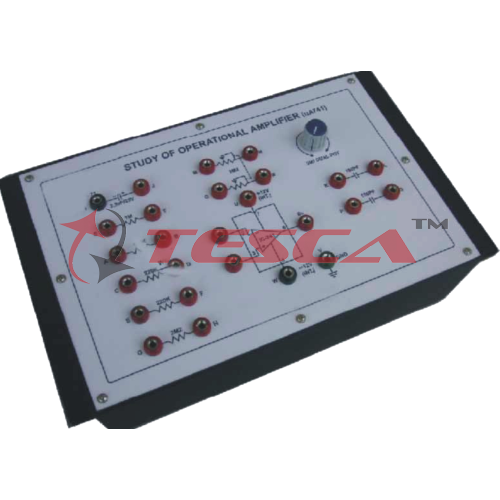

Operational Amplifier Fundamentals Module

Order Code: 22236007.21

Category: General Lab Equipment I

The circuits found on this board include: Attenuator  Voltage Divider  Inverting Amplifier Non-Inverting Amplifier Voltage Follower Inverting Summing Amplifier Non-Inverting Summing Amplifier Difference Amplifier Open ...



SPECIFICATION

The circuits found on this board include:

  • Attenuator
  • Voltage Divider
  • Inverting Amplifier
  • Non-Inverting Amplifier
  • Voltage Follower
  • Inverting Summing Amplifier
  • Non-Inverting Summing Amplifier
  • Difference Amplifier
  • Open Loop Comparator
  • Sine/Square Comparator
  • Additional Equipments for each Item
  • 5 Connecting probes per each module that is compatible with the outlet of the module and with the rating of the module.
  • 1 manual base unit with built in power supply for 1 module that is compatible with the size of the training module


Topic Coverage:

  • Op Amp Types and Packages, Circuit Board Familiarization, Basic Op Amp Characteristics and Parameters
  • Inverting and Non-Inverting Amplifiers Operation: DC and AC
  • Voltage Follower DC Operation, AC Operation
  • Typical Amplifiers Operation: Inverting Gain-of-One Amplifier, Inverting Summing Amplifier, Scaling, Averaging, Non- Inverting Summing, Difference Amplifier (AC/DC)
  • Open-Loop Operation, Zener-Clamped Operation
  • Sine Wave to Square Wave Converter
  • Troubleshooting Basics and Troubleshooting Op Amp Circuits
