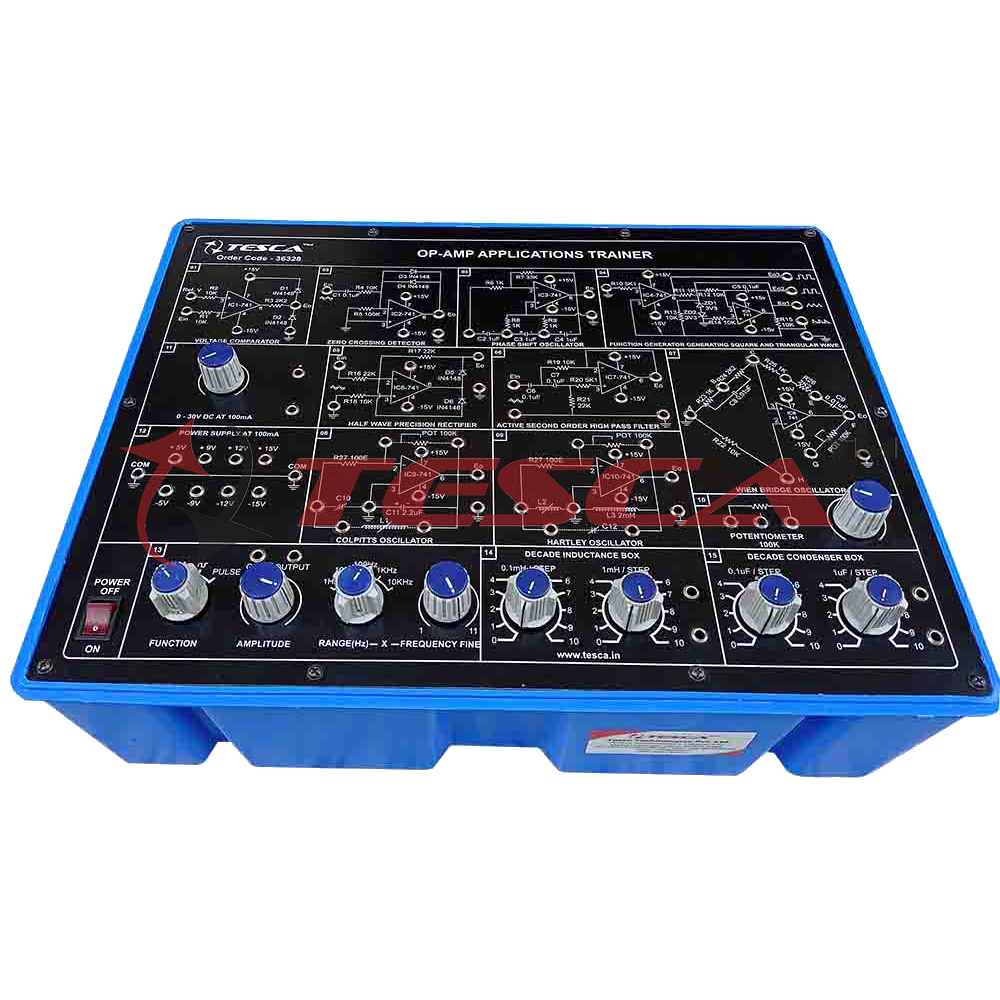

Op-Amp Applications Trainer
Order Code: 36328
Category: Analog Electronics Trainers
36328 An Operational Amplifier, usually referred to as an ‘Op-Amp.’ For brevity, Op-Amps are among the most widely used electronic devices today, being utilized in a vast array of consumer, industrial and scientific devices. In pr...
SPECIFICATION
36328 An Operational Amplifier, usually referred to as an ‘Op-Amp.’ For brevity, Op-Amps are among the most widely used electronic devices today, being utilized in a vast array of consumer, industrial and scientific devices. In present days electronics system a basic building block is the operational amplifier. The Operational amplifier is a versatile device that can be used to amplify DC input signal as well as AC input signal and used for computing mathematical function such as addition, subtraction, multiplication, integration and differentiation, and due to the ability to program these operations the name operational Amplifier stems.
36328, Op-Amp. Application platform student can study the basic mathematical operations addition, Subtraction, Integration, Differentiation, Rectification, Oscillation, Filtering, peak detection, comparison, and so on. However, an ideal operational amplifier is an exteremely versatile circuit element, with a great many applications beyond mathematical operations and to understand and perform those application it is necessary to achieve better understanding of its basic application.
36328 has been divided into different independent blocks for the ease of user to understand the various application of operational amplifier. A function generator, generating Sine wave, Square wave and triangular wave, and variable DC supplies are provided on board.
Feature
- Self contained easy to operate platform
- On board function generator
- Variable power supply
- Functional blocks indicated on board mimic
- Built in power supply
- Operating manual provided
- Compact size
Technical Specification
- Sine wave : 1Hz -110KHz (10VPP)
- Square wave : 1Hz -110KHz (10VPP)
- Triangle wave : 1Hz -110KHz (8VPP)
- Pulse wav : 1Hz -110KHz (8VPP)
- Power supplies : 0-30V (variable)
- Power supplies : %uF0B15, 9, 12, 15V at 100mA
- Decade
- Capacitor box : 0.1uF and 1uF per step
- Decade tota step 20
- capacitor box : 0.1mH and 1mH per step total step 20
- 09 Experiment : Nine individual circuits
- Having Op-Amp,
- Resistance, capacitor,
- Diodes, pot & ect...
- Test points : 28
- Power supply : 230V %uF0B110%, 50Hz
- Power consumption : 4 VA approximately
- Operating conditions : 0-40C, 85% RH
- Learning material : Theory, procedure, Reference results, etc.
- Dimensions (mm) : W415 x H165 x D315
- Weight : 4 Kg approximately
