Product Introduction

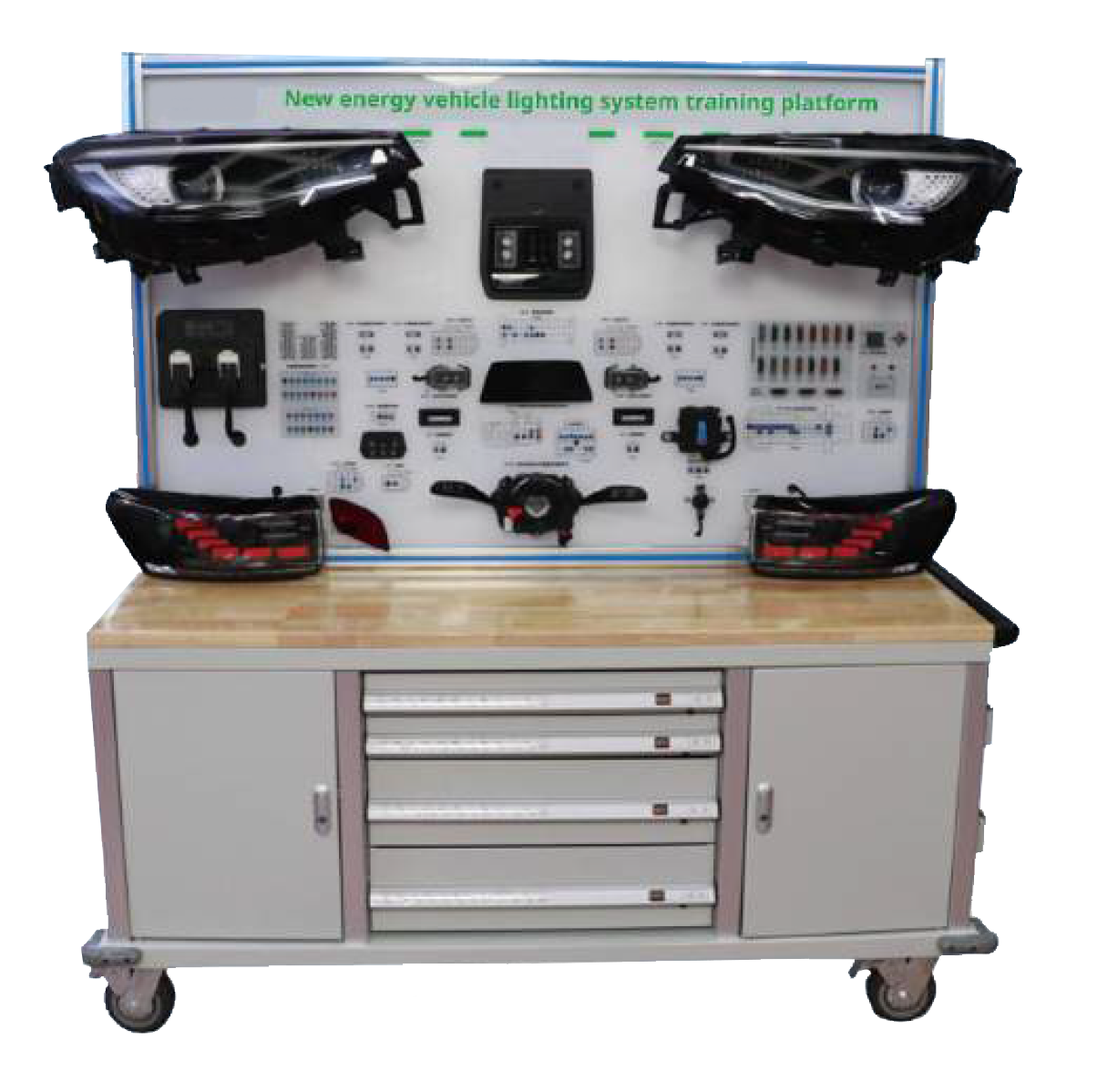

The lighting system training platform is designed and developed by our company based on Volkswagen D.4 interior and exterior lighting. Students can directly complete practical training on the structural recognition, detection, diagnosis and maintenance of new energy vehicle lighting systems on the training platform. Teaching and assessment. Students can simulate relevant circuit faults through the fault setter an the training platform. After fault simulation, students can directly measure on-site signals at the detection terminals corresponding to the detection panel of the training platform.

Technical Specifications

1. The dimensions of the whole machine are 1500*700*1700 mm
2. Teaching panel size: 1400*730*4mm
3. Working voltage: Input 220V AC 50HZ Working: 12V DC

Practical Training Function

1. Practical training teaching and assessment. of new energy vehicle body electrical system cognition.
2. Practical training teaching and assessment on vehicle exterior lighting detection, diagnosis and maintenance.
3. Practical training teaching and assessment on vehicle interior lighting detection, diagnosis and maintenance.
4. Central electrical control system detection, diagnosis and maintenance training teaching and assessment.
5. Practical training, teaching and assessment of fuse relay detection, diagnosis and maintenance.

Composition Of Teaching Resources

Project 1. System cognition

1. Battery awareness
2. Ignition switch; Relay awareness
3. Cognition and working principle of the body control module
4. Cognition and working principle of instrument cluster
5. Cognition and working principle of combination switch
6. Cognition and working principle of headlight switch
7. Cognition and working principle of headlight assembly
8. Cognition and working principle of tail light assembly
9. Cognition and working principle of emergency light switch
10. Cognition and working principle of turn signal
11. Cognition and working principle of fog lights Cognition and working principle of the reversing light switch
12. Cognition and working principle of brake light switch
13. Cognition and working principle of reading lights
14. Cognition and working principle of license plate light

Project 2: Lighting system fault diagnosis and troubleshooting

1. Troubleshooting of low beam lights
2. Troubleshooting of high beam lights
3. Troubleshooting of width indicator light
4. Steering; Troubleshooting of Emergency Lights
5. Troubleshooting of fog lights
6. Reading lamp troubleshooting
7. Brake light troubleshooting
8. Troubleshooting of reversing lights
