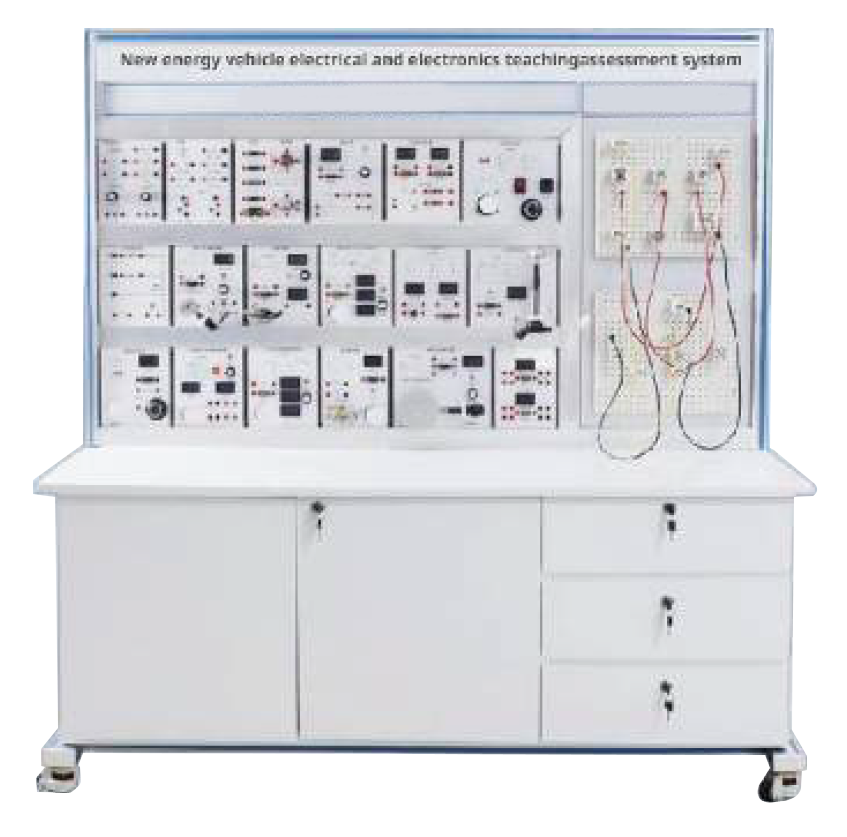

Product Introduction

The new energy vehicle electrical and electronics teaching assessment can enable students to master basic electrical knowledge and electrical engineering foundations, learn common electrical and electronic knowledge through modules, and meet the basic teaching requirements for basic electrical applications of new energy vehicles.

Functional Characteristics

• The new energy vehicle electrical and electronics teaching training and assessment platform adopts modular R&D and production. Each module can be trained individually or in-series and parallel
• The new energy vehicle electrical and electronics teaching training and assessment platform is divided into electronic and electrical basic modules, electronic and electrical sensor modules, and electronic and electrical actuator modules. The assessment module allows for immediate learning, practice, and examination to consolidate knowledge points.
• The practical training part is completed on the measurement circuit board, which is convenient and fast to operate and easy to replace. It is close to the actual work scene and it is easy to generate extended practical training projects. Combined with actual measurements, the practical training is closer to the actual fault, so that the students’ practical training can be more realistic.
• Overcurrent, overvoltage, temperature protection: The whole process monitoring device is overlaaded or short-circuited. Once the above situation occurs, the power supply will be automatically cut off. Only after the fault is eliminated, the working power supply can be restarted to ensure the safety of the equipment and operators

Technical Specifications

1. Stand size is about: 1600*800*1750mm
2. Power supply type: AC 220V
3. Working temperature: -35°C ~ 40°C
4. Equipment weight approximately: 100KG

Supporting Testing Instrument Set

1. Multimeter
2. Oscilloscope
3. Electric Soldering Iron Set
4. Special Cable
